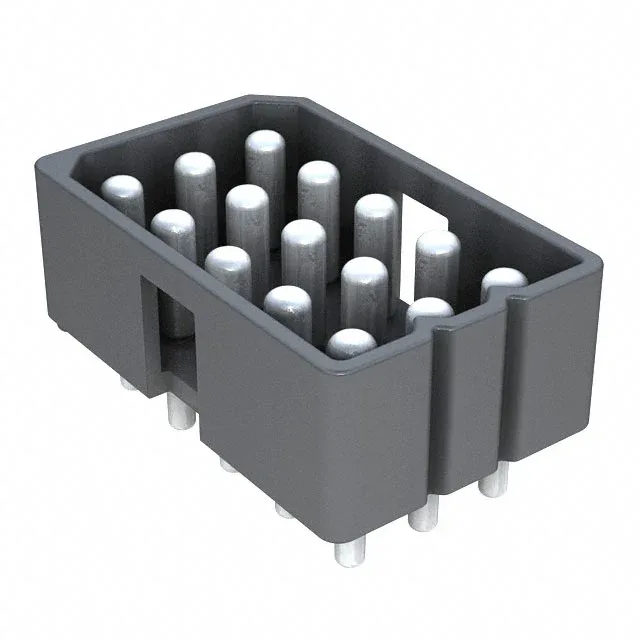

Molex 10181150
MPN10181150
Active
CONN HEADER VERT 15POS 5.03MM
$5.68Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series3099
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3099 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Cartridge Brass |
| Insulation color | Black |
| Insulation height | 0.421\" (10.70mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.198\" (5.03mm) |
| Positions | 15 |
| Row spacing - mating | 0.198\" (5.03mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.170\" (4.32mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
