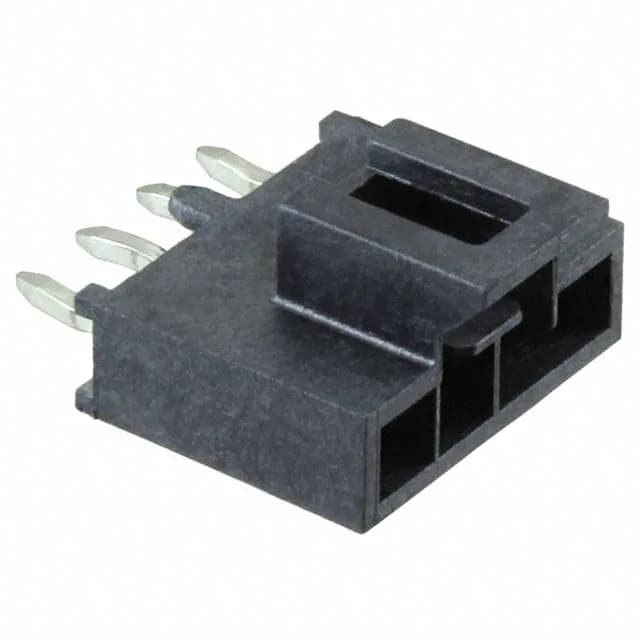

Molex Nano-Fit 105309 header, order code 1053091104, 4 positions, single row, 2.50 mm pitch, 250 V, tin-plated mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105309 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.356\" (9.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Mated stacking heights | 21.30mm |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 59.0µin (1.50µm) |
The 1053091104 is the 4-circuit member of Molex's Nano-Fit 105309 header line, a single-row shrouded board-to-wire header.
The header mates to a stack height of 21.30 mm and includes a board guide to assist alignment during assembly. The 0.356" (9.05 mm) insulation height and 0.126" (3.20 mm) post length set the through-hole footprint for the single-row layout.
