Molex 1053111206 — Pin Headers

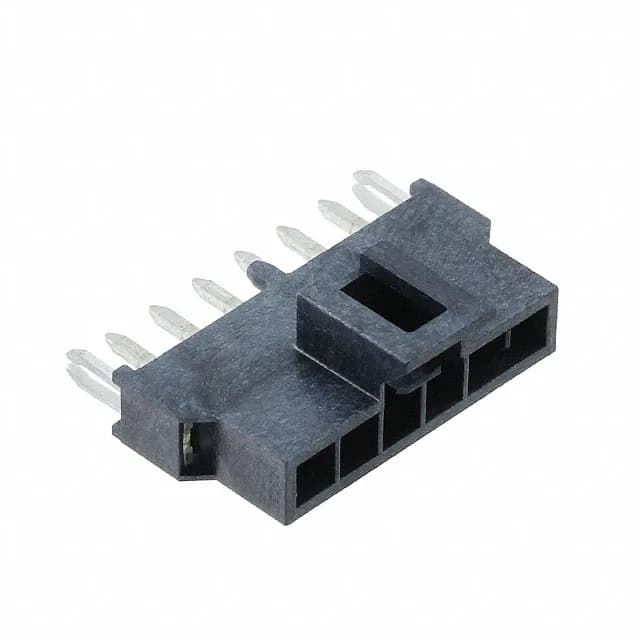

Molex 1053111206 Nano-Fit Header, 6 Pos, 2.5 mm, Shrouded

MPN1053111206
Active

Molex Nano-Fit 105311 series, 1053111206, board-to-cable/wire header, 6 positions, 2.50 mm pitch, shrouded 4-wall, through-hole, gold mating contacts, latch holder, 250 V, -40°C to 105°C.

$2.1000Ref. price · indicative, final on quote
Molex 1053111206 datasheet (PDF)
RoHSROHS3 Compliant
SeriesNano-Fit 105311
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1053111206 key specifications
ParameterValue
SeriesNano-Fit 105311
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.356\" (9.05mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights21.30mm

All specifications

1053111206 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide, Board Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions6
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post59.0µin (1.50µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 1053111206: Through-hole mounting with a 0.126" (3.20 mm) post length provides a solid solder joint into the plated through-hole, and the board lock feature holds the header in place during wave solder.

Mating interface and cycle life from gold plating

Locking and environmental rating for vibration-prone installs

A latch holder fastening type keeps the mated pair locked together under vibration — useful in automotive, industrial machinery, and mobile equipment where the connector sees constant motion.

ROHS3 compliant.

Frequently asked questions

What is the pitch of Molex 1053111206?

The pitch is 0.098" (2.50 mm).

How many positions does the Molex 1053111206 have?

It has 6 positions, all loaded in a single row.

Is the Molex 1053111206 shrouded?

Yes, it is a shrouded 4-wall header — the walls protect the pins during mating and guide the receptacle into place.

Is Molex 1053111206 compatible with Nano-Fit receptacles?

Yes, it is designed to mate with Nano-Fit 105311 series receptacles — same series, same 2.50 mm pitch, same latch lock interface.
