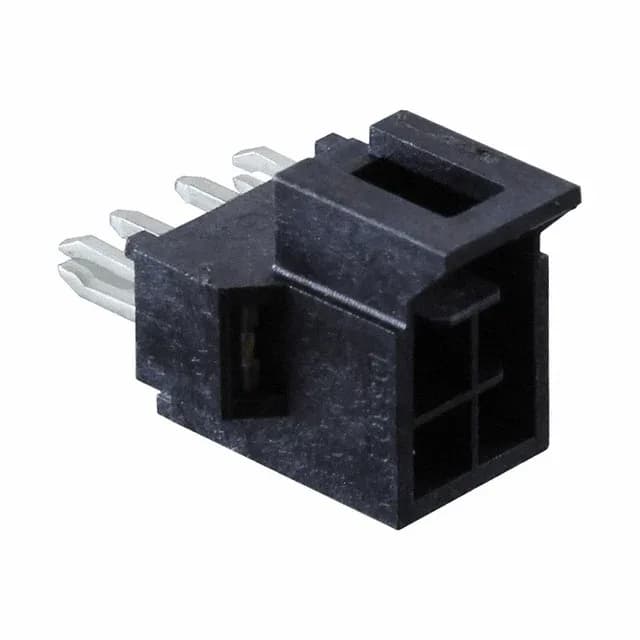

Molex Nano-Fit 105312 series, 1053121204, board-to-cable/wire header, 4 circuits, 2.50mm pitch, shrouded 4-wall, through-hole, gold mating finish, board lock, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105312 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.356\" (9.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 21.30mm |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 4 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The insulation height of 0.356" (9.05 mm) and a mated stacking height of 21.30 mm define the z-height budget — confirm clearance in the enclosure before committing the layout.
No pin-compatible cross-reference from other manufacturers is documented. The Nano-Fit series is Molex-specific, so a second-source swap would require a board layout change.
The mating pitch is 2.50 mm, row spacing is also 2.50 mm, and the mated stacking height is 21.30 mm. The header is shrouded on all four walls.
