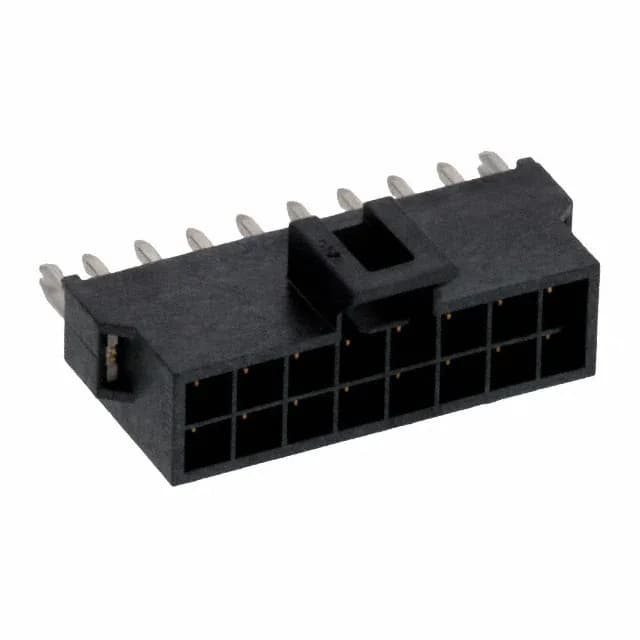

Molex 1053121216 Nano-Fit Header – 16 Pos, 2.50mm, Gold
MPN1053121216
Active
Molex Nano-Fit 105312 series, 1053121216, 16-circuit vertical through-hole header, 2.50mm pitch, gold-plated mating contacts, board lock, shrouded 4-wall, latch holder, -40°C to 105°C, 250V rating.
$3.2200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesNano-Fit 105312
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105312 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.356\" (9.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 21.30mm |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Features | Board Lock |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 16 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
