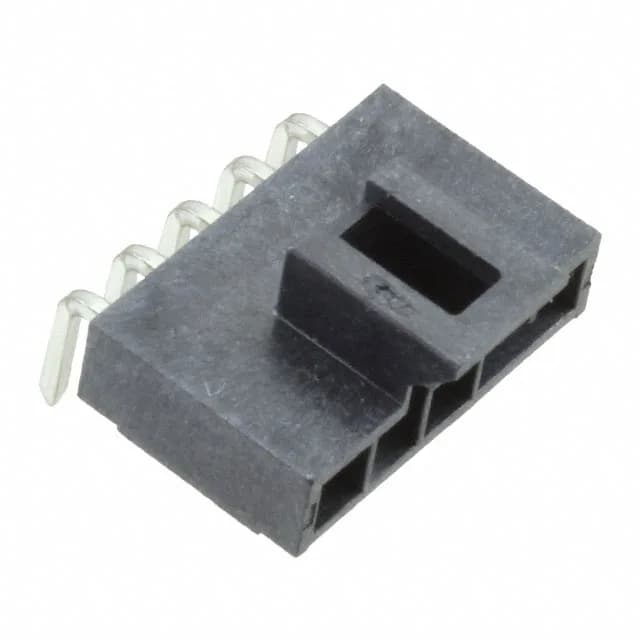

Board-to-cable header for 2.50mm Nano-Fit systems
The through-hole right-angle orientation with a 3.78mm insulation height keeps the connector low-profile at the board edge, saving z-height in compact enclosures.
The header mates with Nano-Fit receptacle housings (105313 series) that accept crimp terminals for 20-24 AWG wire. The shrouded 4-wall design and latch holder provide polarization and positive retention — the latch locks audibly on mate, and the secondary TPA retainer confirms terminals are fully seated before the assembly ships.
