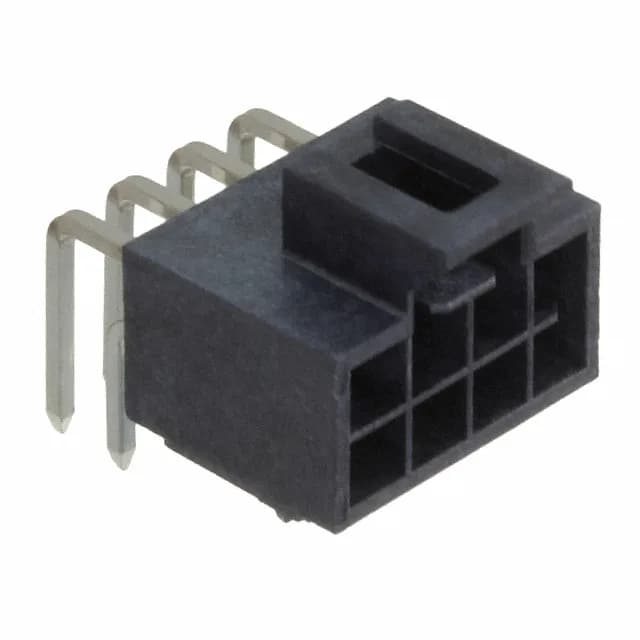

Molex Nano-Fit 105314 series, 1053141108, Board to Cable/Wire header, 8 circuits, 2.50mm pitch, 2 rows, right-angle through-hole, tin-plated contacts, latch holder, -40°C to 105°C, black LCP housing.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105314 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.247\" (6.28mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 8 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 59.0µin (1.50µm) |
The latch holder keeps the header mated to the receptacle under shock and vibration — a practical detail for harnesses routed near engines or conveyor drives where connectors see constant motion.
ROHS3 compliant, tray packaged. The base product number 105314 covers the Nano-Fit 105314 series — confirm the mating receptacle part number separately.
