The 1053141216: The 2.50mm pitch and dual-row layout set the board footprint for a 16-position right-angle header that mates with the Nano-Fit receptacle housing.
Contact finish and mating cycle life
15 µinch gold over nickel on the mating face.

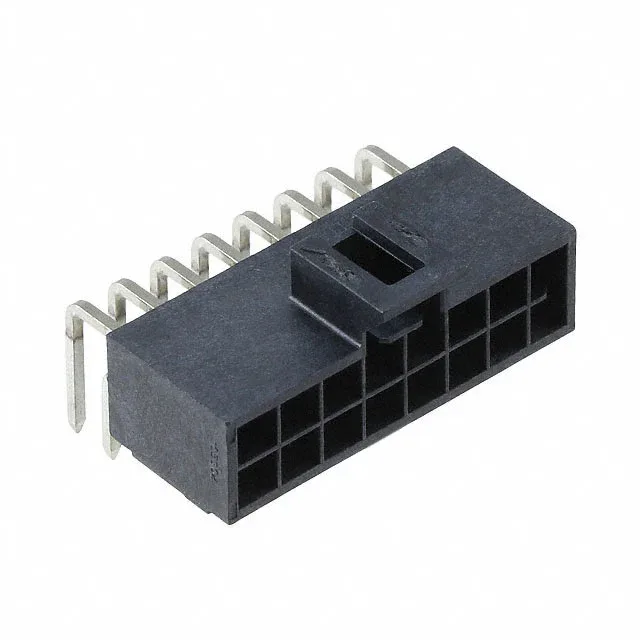

Molex 1053141216 Nano-Fit Header, 16 Pos, 2.5mm, R/A, Gold
MPN1053141216
Active
Molex Nano-Fit 105314 series, 1053141216, Board to Cable/Wire header, 16 positions, 2.50mm pitch, dual-row, right-angle, through-hole, shrouded, gold mating finish, latch holder, -40°C to 105°C.
$4.1600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesNano-Fit 105314
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105314 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.247\" (6.28mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 16 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the mating connector for Molex 1053141216?
The 1053141216 is a male pin header from the Nano-Fit 105314 series. It mates with the corresponding Nano-Fit receptacle housing (female) that accepts crimp terminals.
What is the current rating of Molex Nano-Fit 105314?
The 15 µinch gold contact finish supports this current rating over repeated mating cycles.
