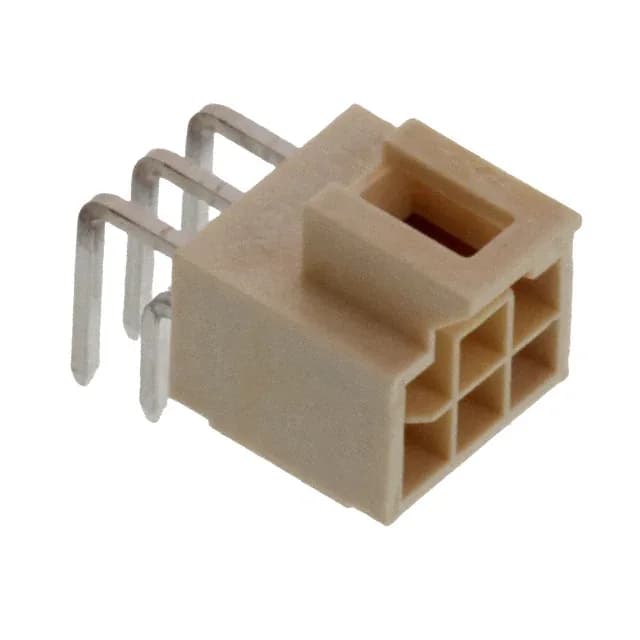

Molex Nano-Fit 105314 series, 1053142206, board-to-cable/wire header, 6 circuits, 2 rows, 2.50mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, latch holder fastening, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105314 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.247\" (6.28mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Molex Nano-Fit 1053142206 is a 6-position, 2-row, right-angle through-hole header from the Nano-Fit 105314 series, designed for board-to-cable/wire connections. The tin-plated posts (59.0µin) solder cleanly into the board.
The 0.138" (3.50mm) post length gives a solid solder joint for the through-hole footprint.
It is ROHS3 compliant.
1053142206 is sourced through independent distribution. No stock-holding claim — each order is sourced per the BOM line.
This header mates with a Nano-Fit 105314 series receptacle housing that accepts crimp terminals. The 6-position, 2-row, 2.50mm pitch layout matches the receptacle's cavity arrangement — confirm the receptacle part number from the same series for the harness side.
