SMT termination with latch hold

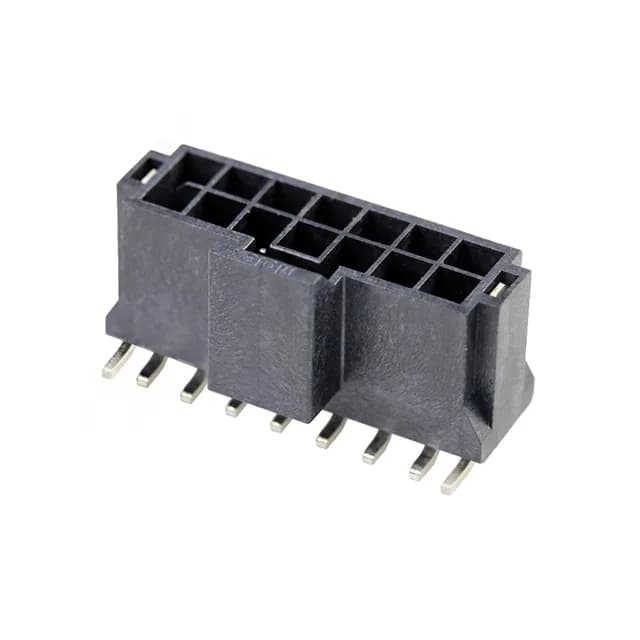

The 1054291314 is the 14-circuit member of Molex's Nano-Fit 105429 header line, a shrouded 4-wall board-to-cable/wire header with a latch holder for positive retention. It terminates via surface-mount solder and carries gold-on-mating contacts rated 4 A per circuit at 250 VAC, with a -40°C to 115°C operating range and UL94 V-0 LCP housing.
Gold mating contacts and latch retention
The 30.0 µin gold mating finish supports repeated mating cycles without contact fretting, while the latch holder keeps the mated pair locked under vibration — a combination that suits field-serviceable connections where the header sees multiple engage/disengage cycles.
