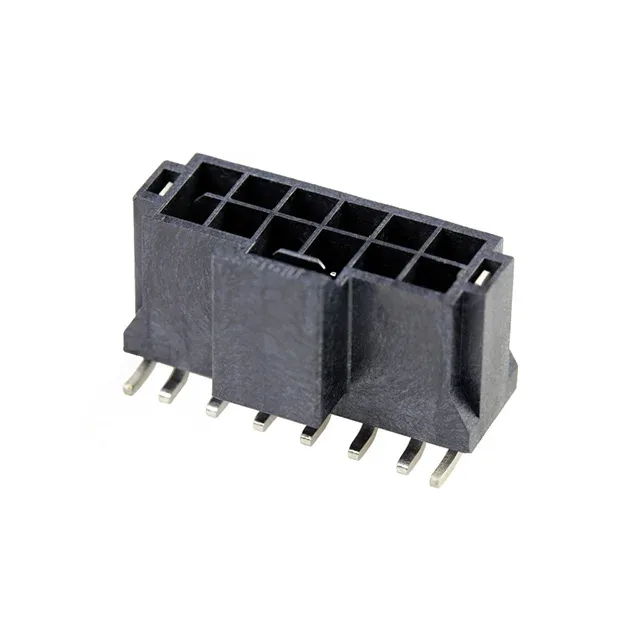

Molex 1054291412
MPN1054291412
Active
NANOFIT HDR SMT VT DLR 12CKT 30A
$6.99Ref. price · indicative, final on quote
SeriesNano-Fit 105429
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105429 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | 4A |
| Operating temperature | -40°C ~ 115°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.382\" (9.70mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
