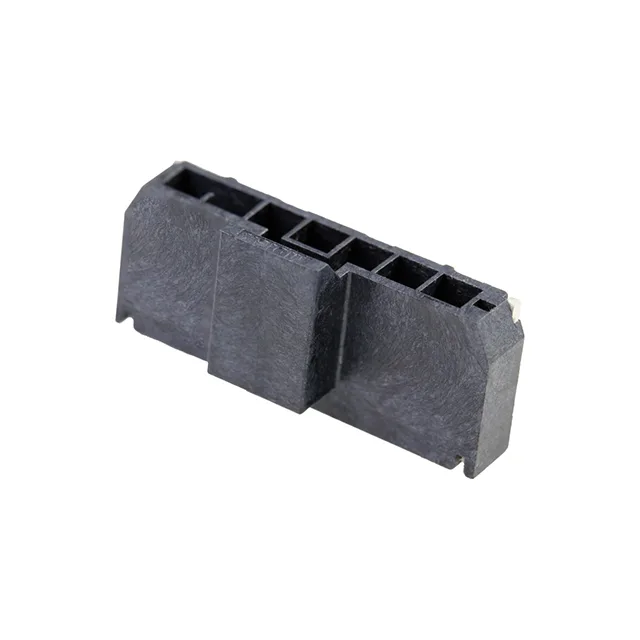

Molex Nano-Fit 105430 header, order code 1054301307, 7 positions, single row, 2.50 mm pitch, 250 VAC, gold-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 105430 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 115°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.776\" (19.70mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1054301307: Solder retention features on the SMT tails hold the connector in place during reflow and reduce shear stress on the solder joints from cable strain.
Quoted to order against the BOM quantity; availability confirmed at RFQ.
