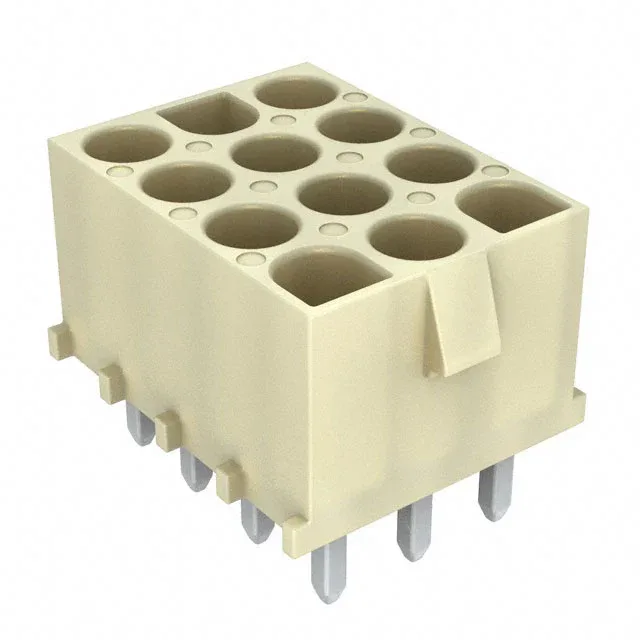

CONN HDR 12POS 0.25 TIN PCB
$2.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | MLX 42002 |
| Gender | Female Socket |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 12 |
| Row spacing - mating | 0.250\" (6.35mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.169\" (4.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 137.8µin (3.50µm) |
| Contact finish thickness - mating | 137.8µin (3.50µm) |
Sourcing this connector
Molex 10844122 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
