Molex 1200710038
MPN1200710038
Active

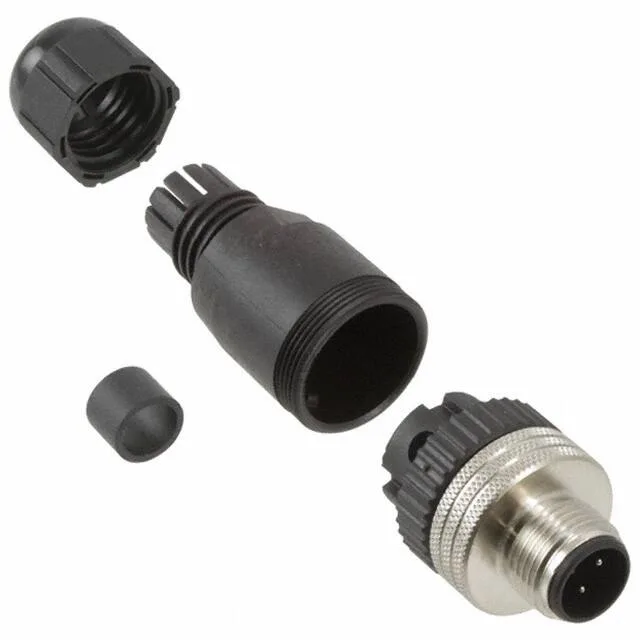

CONN RCPT MALE 4POS SILVER SCREW
$35.37Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBrad Micro-Change 120071
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Brad Micro-Change 120071 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 250VAC, 300VDC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.130\" ~ 0.260\" (3.30mm ~ 6.60mm) |
| Operating temperature | -25°C ~ 90°C |
| Color | Black, Silver |
| Shell material | Brass |
| Insert material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Backshell |
| Orientation | Keyed |
| Termination | Screw |
| Applications | Industrial |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Silver |
