6-Position MX150 Plug Housing for Sealed Harness Runs

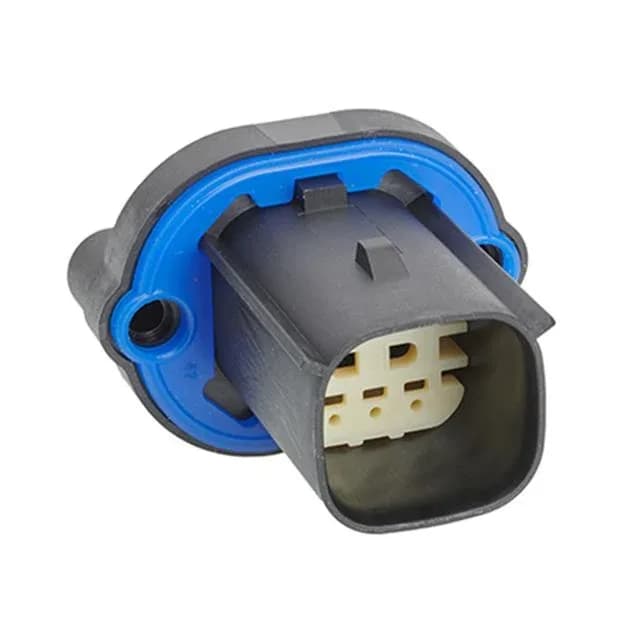

The Molex MX150 1480286003 is a 6-position, 2-row plug housing from the MX150 148028 series, designed for sealed wire-to-board or wire-to-wire interconnect in harsh environments. The housing is panel-mount, accepts male blade contacts (sold separately), and includes a pre-installed gasket for environmental sealing plus a Terminal Position Lock (TPA) that confirms each crimp terminal is fully seated before the connector leaves the harness board.
What the 3.50mm Pitch and Locking Ramp Mean for the Assembly
The 3.50mm pitch gives enough room between contacts for the 125°C-rated PA46 housing to handle the current load typical of power and signal circuits in a sealed connector — without forcing an oversized footprint on the panel cutout. The locking ramp engages with a positive click on the mating receptacle, and the TPA acts as a secondary lock: if a terminal isn't fully crimped and inserted, the TPA won't slide home. That saves a rework trip back to the harness board.
This housing ships as an empty shell. The male blade contacts must be ordered separately — the MX150 series uses specific crimp terminals that match the 3.50mm pitch cavity. The housing is gray, packed in trays, and accepts the standard MX150 male terminal for the wire gauge range the harness calls for.
Temperature Range and Material for Harsh Environments
The gasket seals the interface against splash and pressure wash when mated with the corresponding MX150 receptacle. ROHS3 compliance is on record.
