Molex 1510340014

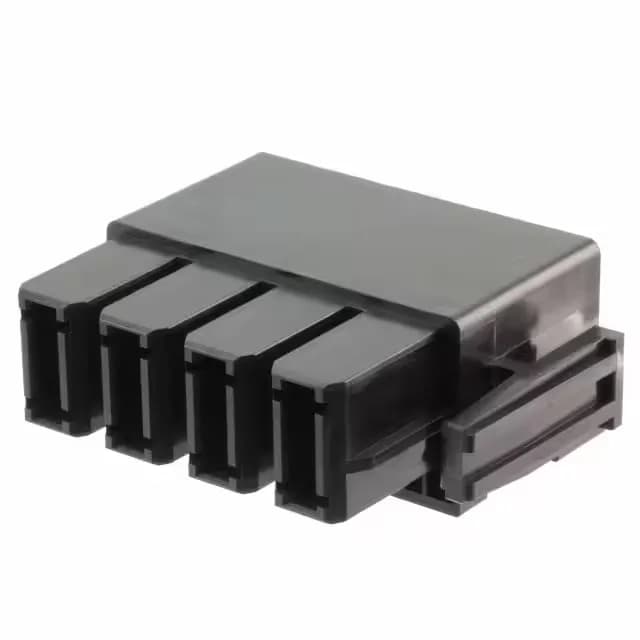

Molex EXTreme Guardian 1510340014, 4-pos receptacle, 80 A

MPN1510340014
Active

Molex EXTreme Guardian 151034 series, 1510340014, 4-position single-row receptacle housing, 0.433" (11.00 mm) pitch, 80 A, free-hanging (in-line), female blade socket, crimp termination, latch lock, PBT black, -40°C to 105°C, RoHS3, contacts not included.

$5.66Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEXTreme Guardian 151034
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1510340014 specifications
ParameterValue
SeriesEXTreme Guardian 151034
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Current rating80 A
Operating temperature-40°C ~ 105°C
ColorBlack
Material - insulationPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.433\" (11.00mm)
PackageTray
Rows1
Contact terminationCrimp
Positions4

Product details

The Molex 1510340014 is the 4-circuit receptacle housing in the EXTreme Guardian 151034 series. It's a free-hanging (in-line) power interconnect rated 80 A per circuit on a single row at 0.433" (11.00 mm) pitch. The latch lock holds the pair mated without tools, which is handy when you're re-pinning a harness on site.

80 A per circuit — what that means for the build

Rated 80 A per circuit at 11.00 mm pitch.

Mating and termination — what crosses into the harness you've got

This receptacle mates with the EXTreme Guardian male header (the plug half with blade terminals). The latch lock engages audibly and holds under vibration — no secondary screw lock needed. Termination is crimp, so you can re-pin it on site with the correct tooling.

Frequently asked questions

Does 1510340014 include contacts?

No — the listing explicitly notes 'Contacts Not Included'. You must order the matching EXTreme Guardian female blade crimp terminals separately.

What is the mating connector for 1510340014?

The mating half is the EXTreme Guardian male header (plug housing with male blade terminals) in the same series, same pitch and circuit count.

Where can I buy 1510340014?

Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
