What this is and where it sits in the series

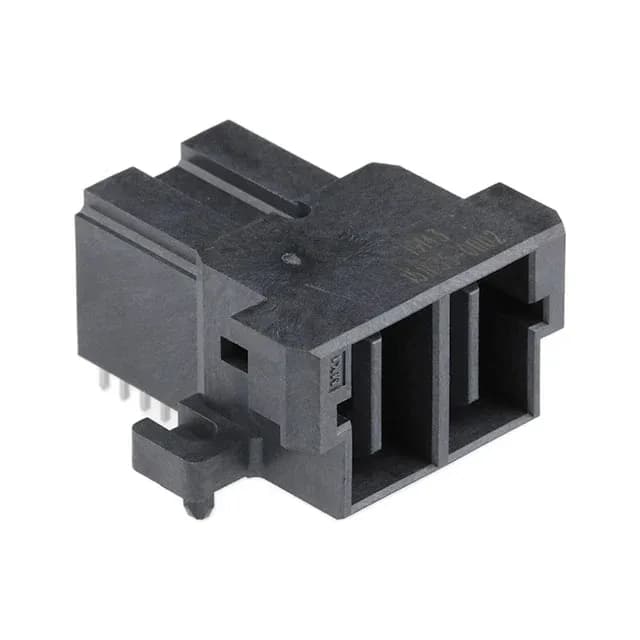

The Molex 1510350002 is the 2-circuit member of the EXTreme Guardian II 151035 series — a right-angle male-blade power plug with through-hole solder termination and a locking ramp. At 0.433 inch (11.00 mm) pitch, this connector is sized well beyond typical board-to-board or signal headers — the wider spacing carries the thermal and electrical headroom that 80 A per circuit demands. Gold-over-copper-alloy contacts at 30.0 µin (0.76 µm) thickness run the full 80 A current path without the tin-plating concern of lower-cycle signal headers; the plating also resists oxidation across power-on/off cycles. The Liquid Crystal Polymer (LCP) housing holds its电气 and mechanical properties from −40°C through 105°C, covering most industrial and backend power distribution environments.
Key ratings for the fit decision
80 A at 600 V per circuit — this is the primary BOM match criterion. If the circuit needs ≤80 A and ≤600 V, the rating clears the application envelope; the 11.00 mm pitch then confirms board footprint fit against the layout. Right-angle through-hole orientation means the plug mounts flush to the PCB surface and routes the cable or bus-bar entry parallel to the board — relevant when z-height is constrained but lateral footprint is available. Board guide feature helps align the mating receptacle during blind or high-vibration insertion — a practical detail when the pair is not in direct line-of-sight during assembly.
Lifecycle and sourcing posture
The 1510350002 is Active and ROHS3 Compliant. No official successor or cross-reference is on record in the ledger — confirm the 2-circuit position count against the BOM line and source against RFQ for the required quantity.
What it mates with
The 1510350002 is a male-blade plug — the mating half will be the matching EXTreme Guardian II 151035 series receptacle or header with the same 2-position, 11.00 mm pitch footprint. Verify the receptacle's orientation (panel or PCB mount) and locking mechanism type before specifying.
