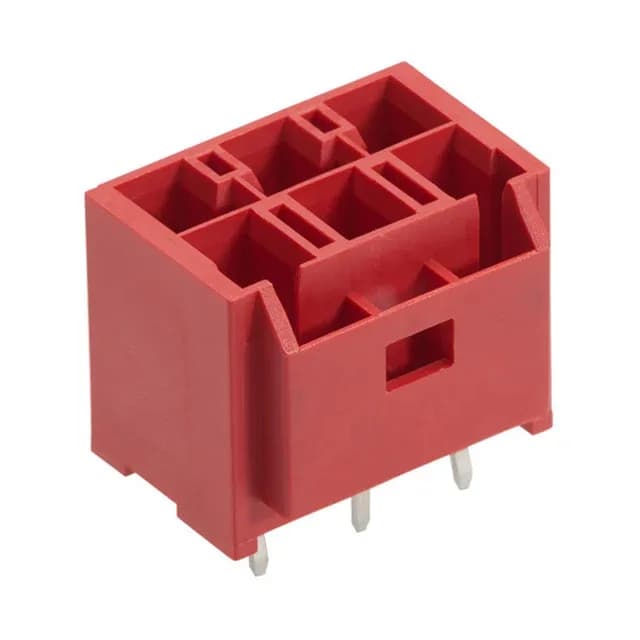

6.50 mm Pitch, 6 Circuits, Shrouded — Board-to-Wire Power Header
The 1510481609: It carries 6 positions in two rows at a 6.50 mm pitch — wide enough to handle higher current per contact than a standard 2.54 mm signal header, and the 0.256" row spacing matches the same pitch, so the footprint is symmetrical. A built-in board guide aligns the header during automated insertion or manual placement. The kinked solder tails provide retention during wave soldering before the solder joint solidifies.
Mates with CP-6.5 Receptacle — Confirm the Mating Half
The kinked solder post at 0.150" (3.81 mm) suits standard 1.6 mm PCBs.
The part ships in trays. No official cross-reference or pin-compatible alternative is listed in this series; the CP-6.5 family is the only direct fit.
Industrial and General-Purpose Deployment
The red insulation color aids visual identification on a crowded board. Board-to-wire style means the header stays on the PCB while the mating receptacle terminates the cable — typical for power distribution from a board to a harness in control cabinets, industrial machinery, or power supplies.
