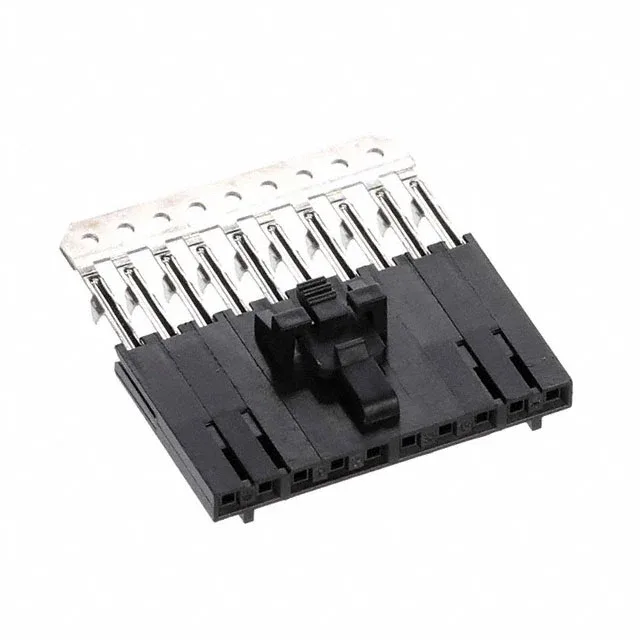

Molex 15388100
MPN15388100
Active
CONN CIC FFC RCPT 10POS 2.54MM
$3.55Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 70430
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70430 |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Straight |
| Flat flex type | CIC, FFC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | IDC |
| Mating cycles | 25 |
| Contact finish | Tin |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.13 ~ 0.28mm, 0.30mm |
| Positions | 10 |
| Contact finish thickness | 150.0µin (3.81µm) |
