MX150 Sealed Receptacle with CPA

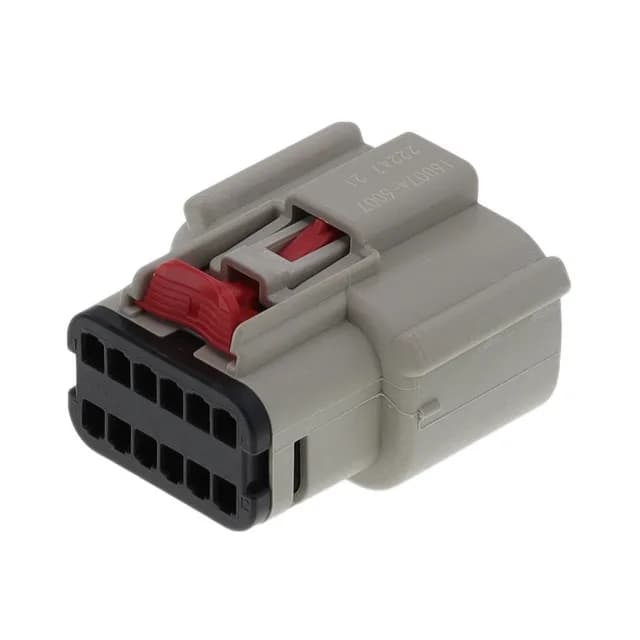

The Molex MX150 1600746007 is a 12-circuit, 2-row receptacle from the MX150 160074 series, designed for sealed wire-to-board or wire-to-wire interconnects in demanding environments. Its 0.138" (3.50mm) pitch supports a compact footprint while maintaining adequate creepage for the voltage class typical of automotive and industrial systems.
Sealing and Retention
The sealed construction means the interface between the receptacle and its mating header is protected against splash and spray — a requirement for engine compartments, washdown zones, and exposed harness runs. This dual-retention scheme is standard on MX150 connectors specified for off-road and heavy-duty vehicle applications.
The nylon material provides good chemical resistance to common automotive fluids and maintains dimensional stability across the temperature span. The gray color is the standard MX150 identifier for this sealed receptacle variant.
The crimp termination allows field-assembly or harness pre-fabrication with standard MX150 crimp tooling. No board footprint is required — the connector mounts directly to a wire harness and mates with a panel-mount or in-line header. The 2-row, 12-position layout matches the circuit count for a 12-way harness branch.
