Sealed 8-position housing for wet harnesses
The 1600783022 is a free-hanging receptacle housing from the MX150 160078 series, designed for sealed wire-to-board or wire-to-wire connections where moisture and vibration are present.

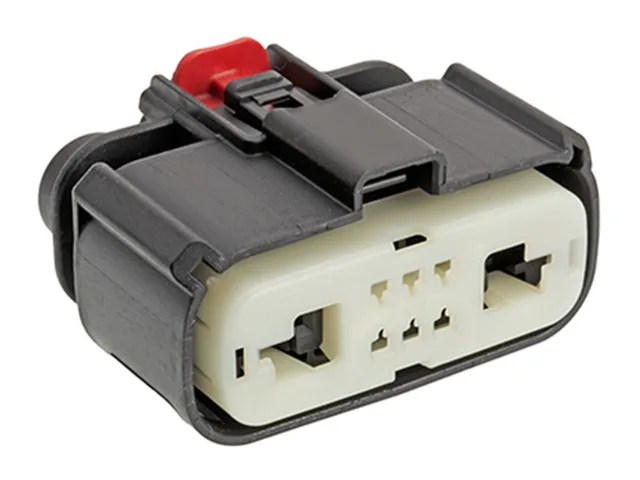

Molex 1600783022 – MX150 8-Position Sealed Receptacle
MPN1600783022
Active
Molex MX150 160078 series, 8-position dual-row receptacle housing, sealed with connector position assurance (CPA) latch, free-hanging in-line, black PA6/GF, contacts not included.
$5.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX150 160078
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX150 160078 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Insulation material | Polyamide (PA6), Nylon 6, Glass Filled |
| Note | Contacts Not Included |
| Package | Bulk |
| Features | Connector Position Assurance (CPA), Sealed |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
Product details
Frequently asked questions
Does Molex 1600783022 include contacts?
No – the housing is supplied without contacts. You must order the matching MX150 female crimp terminals separately for your wire gauge.
Is 1600783022 a sealed connector?
Yes – the housing is sealed and includes a Connector Position Assurance (CPA) latch for vibration-resistant mating. It is designed for wet or dusty environments.
