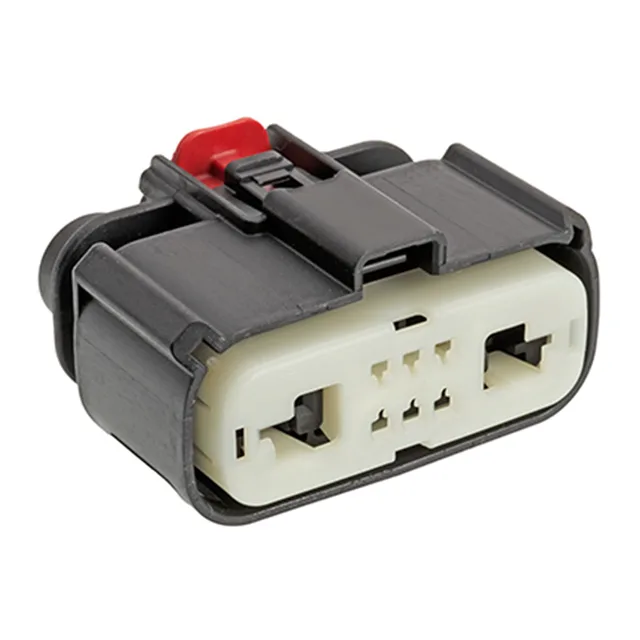

Molex MX150 1600783023 Receptacle, 8-Circuit, 3.50mm, Sealed

MPN1600783023
Active

Molex MX150 160078 series, 8-circuit receptacle, 0.138" (3.50mm) pitch, 2 rows, female socket, crimp termination, free-hanging, sealed with CPA, black PA6 housing, -40°C to 125°C.

$3.8700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1600783023 Technical Specifications
ParameterValue
SeriesMX150 160078
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA6), Nylon 6, Glass Filled
Pitch0.138\" (3.50mm)
FeaturesConnector Position Assurance (CPA), Sealed
PackageBox
Rows2
Contact terminationCrimp
Positions8

Product details

The Molex MX150 1600783023 is an 8-circuit sealed receptacle from the MX150 160078 series, built for wire-to-wire or wire-to-board harness connections in environments where moisture, vibration, and temperature swings are the norm.

What the Sealed Rating Means for Your Harness

The 'Sealed' feature on this MX150 receptacle means the housing is designed to accept silicone or rubber interfacial seals (typically in the mating half and at the wire-entry grommet) that keep water, dust, and splash out of the contact area.

This is a female receptacle — it mates with the corresponding MX150 male header or plug housing (same 0.138" pitch, same 8-circuit, 2-row layout). No soldering or PCB mounting — this is a pure in-line harness connector.

Frequently asked questions

Is Molex 1600783023 a male or female connector?

The 1600783023 is a female receptacle that accepts female socket contacts. It mates with a male header or plug housing from the same MX150 series.

Is 1600783023 a sealed connector?

Yes, the 1600783023 is listed as a sealed connector with a Connector Position Assurance (CPA) feature, designed for environments where moisture and vibration are present.

Where can I buy Molex 1600783023?

This part is active and sourced to order.
