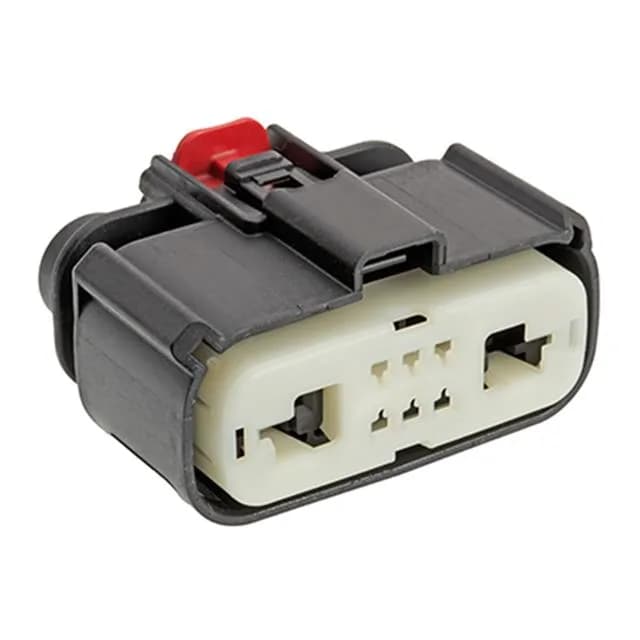

Molex MX150 160078 series, 8-position receptacle housing, 2 rows, gray PA66, latch holder, crimp termination, free-hanging, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Series | MX150 160078 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 125°C |
| Color | Gray |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Package | Box |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
The crimp termination means the harness can be built on a bench and the contacts seated with a hand tool or semi-auto press; field repair is a matter of pulling the old contact with a removal tool and inserting a new one, no soldering iron needed.
Confirm the position count and row count match the header before committing the BOM line.
The 1600783026 receptacle mates with the matching MX150 8-position, 2-row plug header (male pin housing) that uses the same latch holder fastening system.
This part is active and sourced to order. Contact our sales team for current pricing and lead time based on your quantity.
