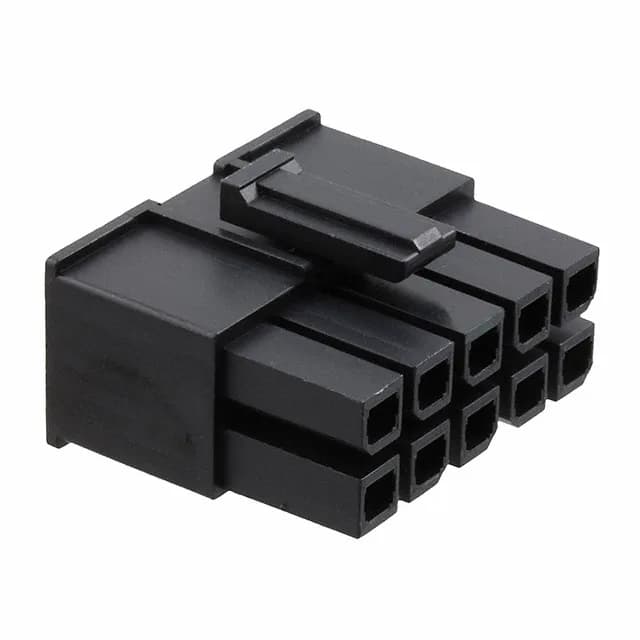

Molex Mega-Fit receptacle housing, order code 1716920110, 10 positions, 5.70 mm pitch, dual row, female socket contacts, latch lock, free-hanging in-line, black PBT, -40°C to 120°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mega-Fit |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Pitch | 0.224\" (5.70mm) |
| Package | Bulk |
| Row spacing | 0.224\" (5.70mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The housing ships without contacts.
The latch lock provides vibration-resistant retention. For the crimp terminals, use Molex Mega-Fit female socket contacts – the exact part number depends on your wire gauge.
Submit an RFQ with your target quantity. No stock-holding claim is made here.
The exact contact part number depends on your wire gauge – refer to the Molex Mega-Fit terminal selection table for 5.70 mm pitch contacts.
Mate this receptacle with a Molex Mega-Fit header (male pin) of the same 10-position, 5.70 mm pitch, dual-row configuration.
No. You must order the female crimp terminals separately.
