Molex 1716920112 — Connector Housings

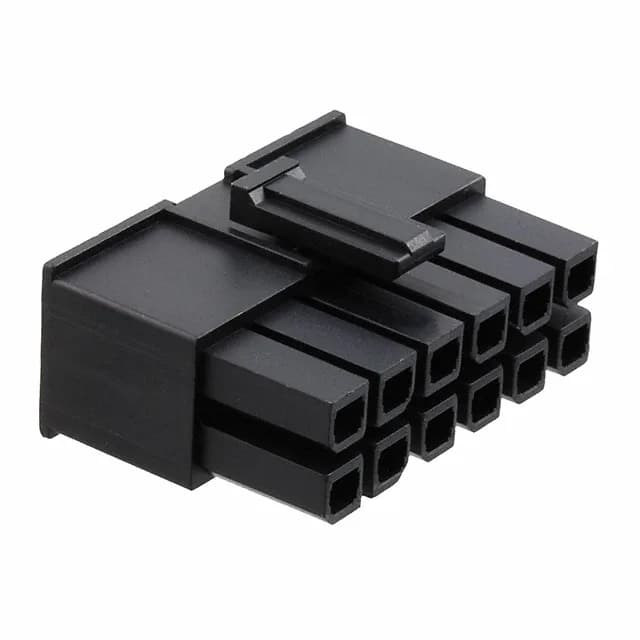

Molex 1716920112 Mega-Fit Receptacle Housing, 12 Pos, 5.70mm

MPN1716920112
Active

Molex Mega-Fit receptacle housing, 12 positions, 5.70 mm pitch, dual row, free-hanging, crimp termination, latch lock, black PBT, -40 to 120 °C.

$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMega-Fit
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1716920112 specifications
ParameterValue
SeriesMega-Fit
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 120°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.224\" (5.70mm)
PackageBulk
Row spacing0.224\" (5.70mm)
Rows2
Contact terminationCrimp
Positions12

Product details

12-Circuit Mega-Fit Receptacle Housing

It uses a 5.70 mm pitch and dual-row layout, giving each circuit enough physical spacing to handle the current the Mega-Fit terminals are rated for.

This housing ships without terminals — the contacts are not included. For a complete connector assembly, order the Mega-Fit female crimp terminals separately.

The 1716920112 receptacle mates with any Mega-Fit male header of the same 5.70 mm pitch and 12-circuit, dual-row configuration. No adapter or polarisation key is needed — the housing is keyed by the cavity shape itself, preventing a 180-degree mis-mate.

The ROHS3 compliance covers current regulatory requirements for EU and similar markets.

Frequently asked questions

Does 1716920112 include contacts?

No, the 1716920112 receptacle housing ships without contacts. The female socket terminals must be ordered separately as part of the Mega-Fit crimp terminal family.

What male connector mates with 1716920112?

Any Mega-Fit male header with 12 positions, dual rows, and 5.70 mm pitch will mate with this receptacle. The latch lock on the housing engages the header's locking feature for vibration-resistant retention.
