10-circuit shrouded header with friction lock

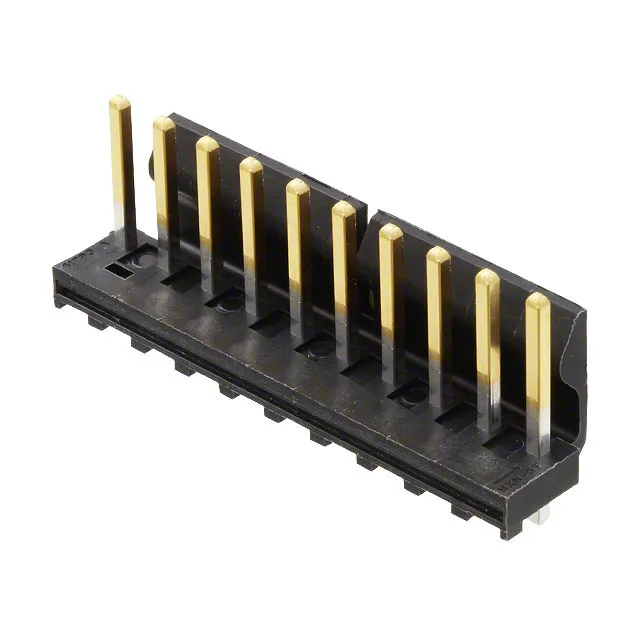

The 1718131010 is the 10-circuit member of Molex's KK396 header line, a single-row shrouded 1-wall header with a friction lock for positive retention.
Molex KK396 header, order code 1718131010, 10 positions, single row, 0.156" (3.96 mm) pitch, through-hole solder, shrouded 1-wall with friction lock, gold-plated mating contacts.
$1.8185Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 171813 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Overall contact length | 0.671\" (17.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.448\" (11.38mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 1718131010?
The 1718131010 is an active Molex part.
What is 1718131010's listed style?
The style is Board to Board or Cable per the series listing.
