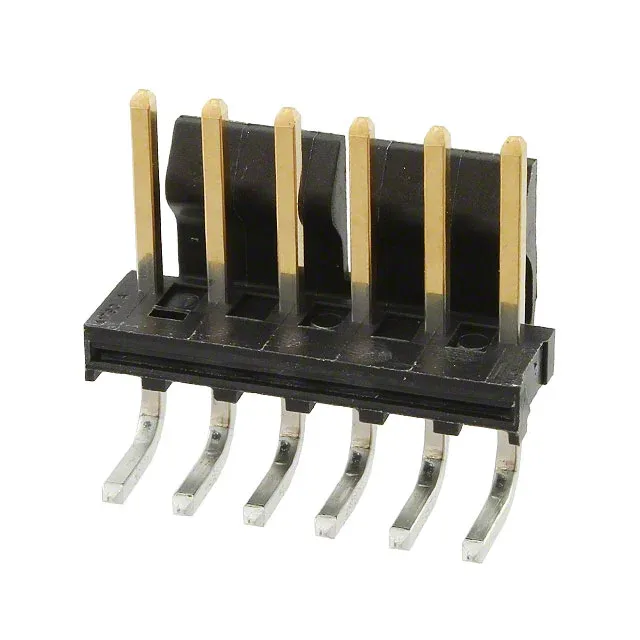

Molex KK396 header, order code 1718141006, 6 positions, single row, 0.156" (3.96mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | KK396, 171814 |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.446\" (11.33mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1718141006 is the 6-circuit member of Molex's KK396 header line, a single-row shrouded header with a friction lock for wire-to-board or board-to-board duty.
The 1718141006 ships in bulk; the same 6-circuit KK396 header is also available as 171814-1006 in a box. The pitch, plating, and mounting are identical across the two packaging variants.
The listed style is Board to Board or Cable, indicating it can be used as a board-to-board header or a wire-to-board header with a mating receptacle.
