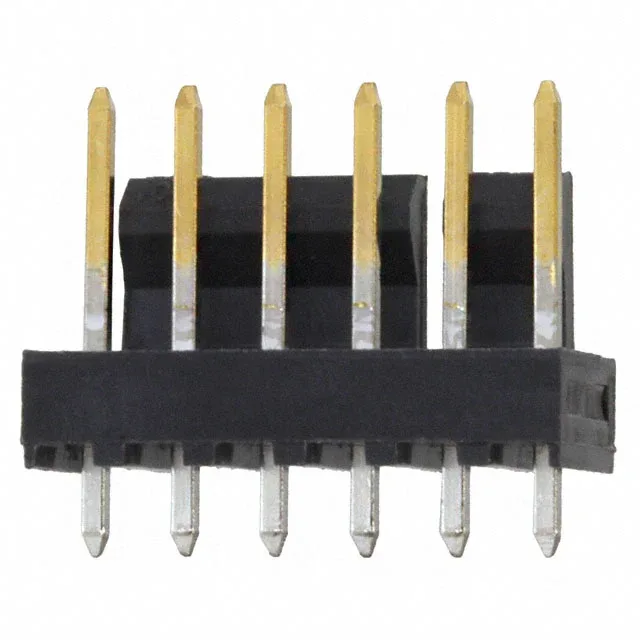

Molex 1718561006
MPN1718561006
Active
CONN HEADER VERT 6POS 2.54MM
$1.0Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK254, 171856
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 171856 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.092\" (2.34mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.293\" (7.45mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
