Molex KK254, 171857 series, 3-position single-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, gold mating finish, tin post finish, UL94 V-2, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | KK254, 171857 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.265\" (6.73mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
ROHS3 compliant, with a UL94 V-2 rated nylon housing. The V-2 rating is acceptable for general-purpose equipment inside an enclosure; if your application requires V-0, verify the housing material against your safety standard.
The header is shrouded on one wall, providing keying against reverse mating. It accepts a Molex KK254 crimp receptacle housing (such as the 50-57-9403 or similar 3-circuit housing) with the matching 2.54 mm pitch terminals.

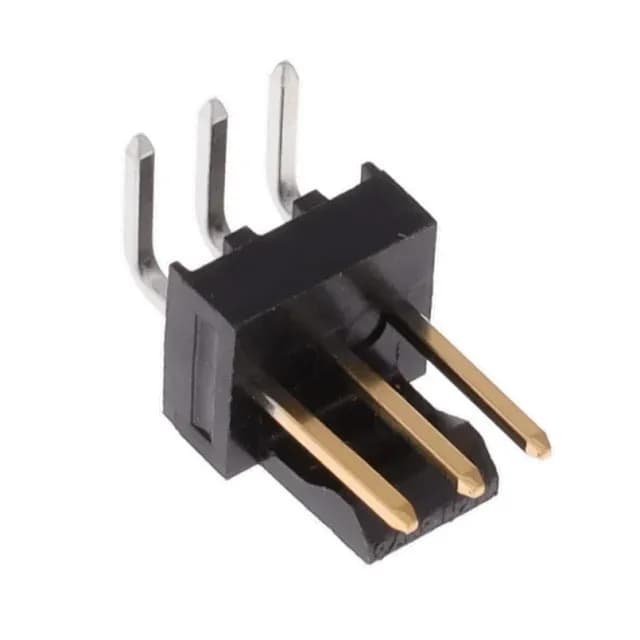

The 1718574003 is a 3-position, 0.100" pitch, single-row header with a friction lock. The friction lock engages with the receptacle's locking ramp.
