Molex 1720420401

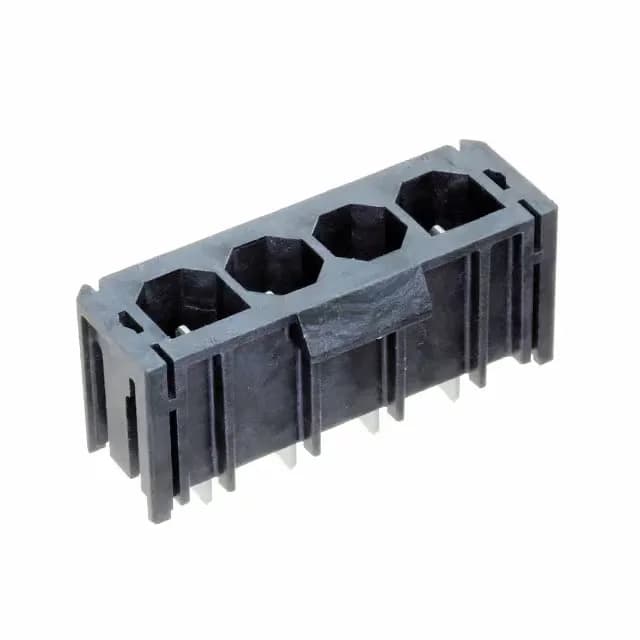

Molex Super Sabre 1720420401 Header, 4 Pos, 7.50mm, 30 A

MPN1720420401
Active

Molex Super Sabre 172042 1720420401, Header, Male Blades, 4 Positions, 1 Row, 0.295" (7.50mm) Pitch, Through Hole, Solder, 30 A, 600 V, Silver Contact Finish, Black, Tray.

$2.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSuper Sabre 172042
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1720420401 specifications
ParameterValue
SeriesSuper Sabre 172042
MountingThrough Hole
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating30 A
Operating temperature-40°C ~ 125°C
ColorBlack
Contact materialCopper
Material - insulationLiquid Crystal Polymer (LCP), Glass Filled
Pitch0.295\" (7.50mm)
PackageTray
FeaturesFinger-Proof
TerminationSolder
Contact finishSilver
Rows1
Positions4
Contact finish thickness100.0µin (2.54µm)

Product details

The 1720420401: Silver contact finish at 100.0µin (2.54µm) thickness is the standout here — most power headers in this class use tin or selective gold. Silver gives lower contact resistance at first mate and sustains it over more cycles than tin, but it tarnishes in sulphurous environments. For sealed or clean indoor gear the silver holds up well; for outdoor or engine-bay exposure, verify the mating housing provides an environmental seal. The thick plating also handles the blade wipe-in force of the locking ramp engagement without galling.

Finger-proof feature on the header shroud protects against accidental contact with live blades — a useful safety detail for unshrouded power headers in service-access areas. The locking ramp requires the matching receptacle housing to have the corresponding ramp catch; confirm the mating half part number before committing the assembly.

Frequently asked questions

Where can I buy 1720420401?

The 1720420401 is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here. Submit an RFQ for your BOM quantity to get a firm offer.
