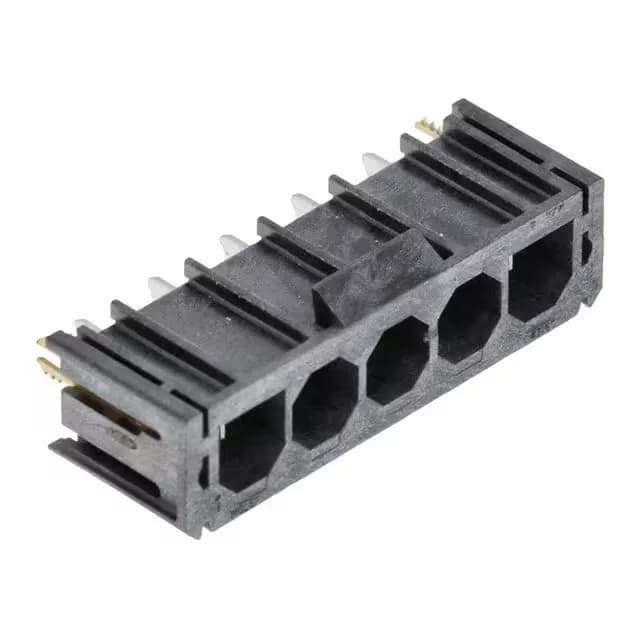

Molex Super Sabre 172042 series, Header, Male Blades, 5 positions, single row, 0.295" (7.50mm) pitch, through-hole solder, silver contacts 100.0µin, 30 A, 600 V, board lock, finger-proof, black LCP, -40°C to 125°C, tray, RoHS3, Active.
| Parameter | Value |
|---|---|
| Series | Super Sabre 172042 |
| Mounting | Through Hole |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 30 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper |
| Material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock, Finger-Proof |
| Termination | Solder |
| Contact finish | Silver |
| Rows | 1 |
| Positions | 5 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 1720420502: The contacts are silver-plated to 100.0µin (2.54µm) — a heavy-grade finish that handles repeated high-current mating cycles without the fretting corrosion you'd see on a thin tin plate. The finger-proof shroud around the blades is a safety feature at 600 V — no accidental contact during servicing.
No — the 1720430606 is a 6-position right-angle header, while the 1720420502 is a 5-position straight through-hole. The position count, orientation, and footprint differ.
