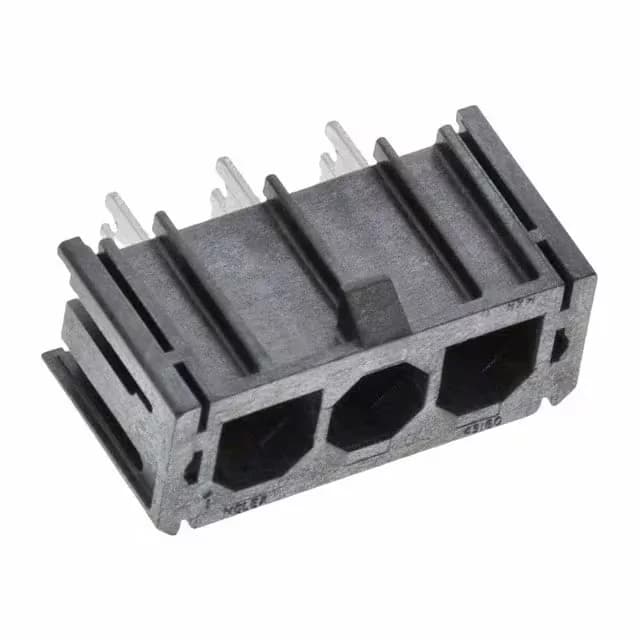

Molex Super Sabre 1720430301 Header, 3 Pos, 7.50mm, 30 A
Molex Super Sabre 1720430301 header, male blades, 3 positions, 1 row, 0.295" (7.50mm) pitch, through hole right angle, solder termination, silver contacts, 30 A, 600 V, black, tray.
Specifications
| Parameter | Value |
|---|---|
| Series | Super Sabre 172043 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 30 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper |
| Material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Finger-Proof |
| Termination | Solder |
| Contact finish | Silver |
| Rows | 1 |
| Positions | 3 |
| Contact finish thickness | 100.0µin (2.54µm) |
Frequently asked questions
What is the pitch of the 1720430301?
The pitch is 0.295" (7.50 mm). That's a wide pitch suited for high-current power distribution.
What is the current and voltage rating of the 1720430301?
It is rated 30 A per contact at 600 V. This is a power interconnect, not a signal connector.
What color is the 1720430301 housing?
Black. The housing is black Liquid Crystal Polymer (LCP), glass filled.
Will the 1720430301 drop into a panel laid out for the 1720430206?
The first two positions share the same footprint and pitch, so a panel drilled for the 2-position can accept the 3-position if you add a third wire and terminal. The 3-position header is longer, so the board must have clearance for the extra position.
Where can I buy the 1720430301?
It is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
