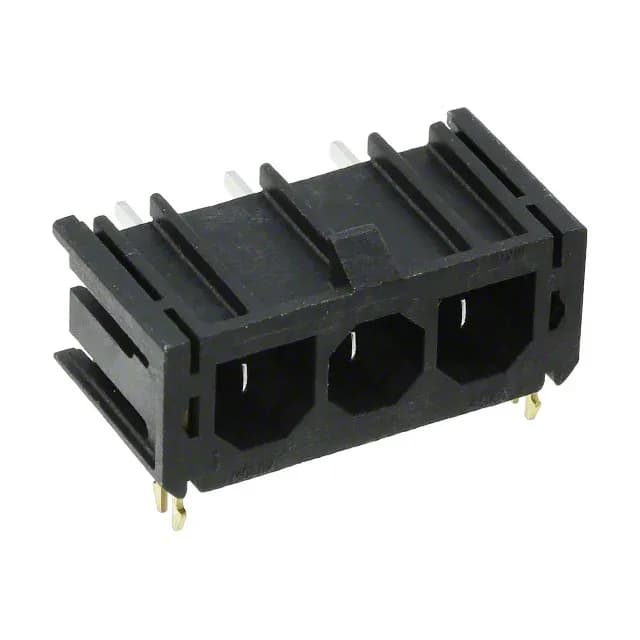

Molex Super Sabre 1720430302 Header, 3 Pos, 30 A
MPN1720430302
Active
Molex Super Sabre 172043 series, 1720430302, 3-position single-row right-angle through-hole male header, 0.295" (7.50mm) pitch, 30 A per circuit at 600 V, silver contact finish 100.0µin (2.54µm), locking ramp, board lock, finger-proof, black LCP insulator, -40°C to 125°C, ROHS3 Compliant.
$4.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSuper Sabre 172043
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Super Sabre 172043 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 30 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper |
| Material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock, Finger-Proof |
| Termination | Solder |
| Contact finish | Silver |
| Rows | 1 |
| Positions | 3 |
| Contact finish thickness | 100.0µin (2.54µm) |
Frequently asked questions
What is the pitch and current rating of 1720430302?
The pitch is 0.295" (7.50 mm) and the current rating is 30 A per circuit at 600 V.
Can 1720430302 replace the 2-position 1720430206 in an existing panel?
Yes, the 3-position 1720430302 shares the same pitch, mounting style, and locking ramp as the 2-position 1720430206, so it fits the same board footprint and mates with the same receptacle. The extra position can be left unpopulated or used if the harness is re-pinned.
