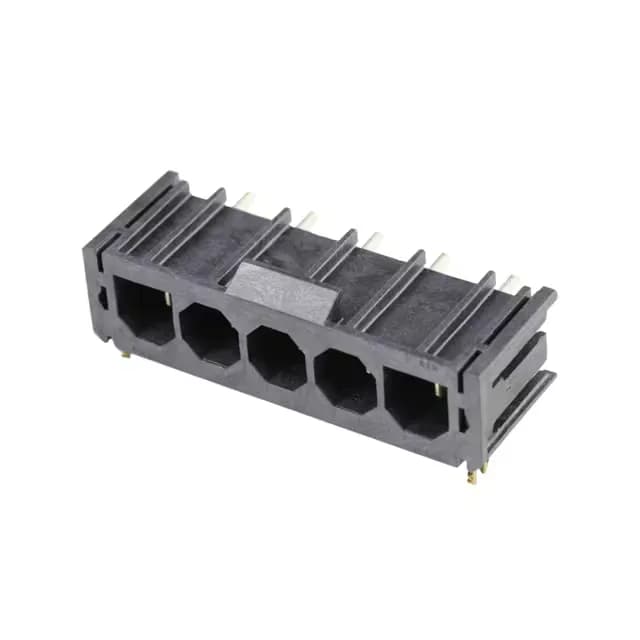

Molex Super Sabre 172043 series, 1720430502, 5-position right-angle male header, 0.295" (7.50mm) pitch, 30 A per circuit, 600 V, silver-plated contacts 100µin thick, through-hole solder, board lock, finger-proof shroud, Black, Tray.
| Parameter | Value |
|---|---|
| Series | Super Sabre 172043 |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 30 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper |
| Material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock, Finger-Proof |
| Termination | Solder |
| Contact finish | Silver |
| Rows | 1 |
| Positions | 5 |
| Contact finish thickness | 100.0µin (2.54µm) |
Within the Super Sabre 172043 series, the 5-position 1720430502 shares the same 7.50 mm pitch, 30 A rating, 600 V rating, silver plating, board lock, and right-angle through-hole mounting as the 2-position 1720430206 and the 6-position 1720430606.
The pitch is 0.295" (7.50 mm), which gives enough creepage for the 600 V rating without forcing an oversized board footprint.
No — the 1720430606 is a 6-position header at the same pitch. The 5-position 1720430502 has one fewer blade and a shorter footprint, so it will not fill the same PCB layout without a board revision.
The 1720430502 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
