What this header is and where it sits in the Super Sabre line

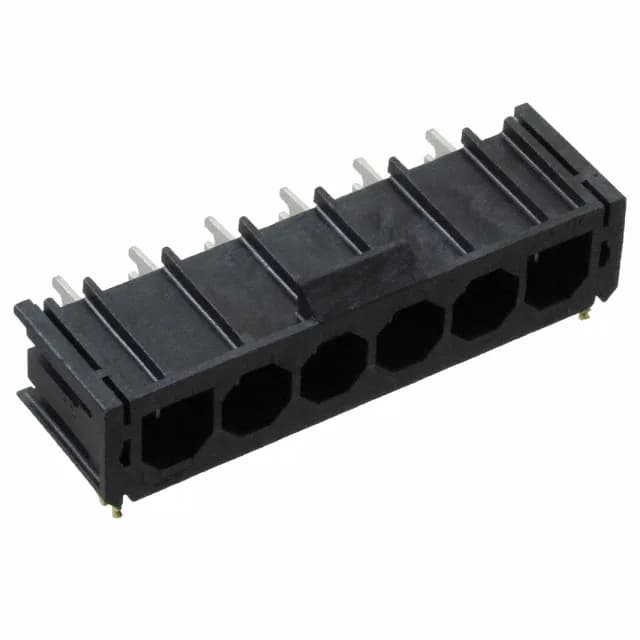

The Molex 1720430606 is the 6-circuit member of the Super Sabre 172043 series — a single-row right-angle male blade header rated 30 A per circuit at 600 V, terminated via through-hole solder. At 7.50 mm (0.295") pitch the 172043 sits in the medium-density power-header band — wider than a Micro-Fit but tighter than a Mega-Fit — making it a common choice for motor-drive power rails and inverter output stages where board real estate is at a premium. The 30 A per-circuit rating reflects the Super Sabre's silver-over-copper contact system — silver plating at 100 µin (2.54 µm) delivers lower contact resistance than tin at this current level, and the thicker deposit resists surface oxidation under intermittent load.
How the ratings drive the fit decision
The 600 V voltage rating covers AC and DC bus rails up to that level — confirm the working voltage in your system against this ceiling, not just the 30 A current, since voltage and current interact in derating for densely packed headers. Finger-proof shrouding means the live blade tips are enclosed before mating — relevant for field-service contexts or whenever the header is exposed during live-circuit servicing. The locking ramp provides audible positive engagement during mating; the board-lock feature anchors the header body to the PCB during wave-solder reflow and reduces mechanical lift at the joint after assembly. The operating range of -40°C to 125°C suits outdoor and industrial enclosure environments — the LCP glass-filled housing maintains its insulation resistance through thermal cycling without the moisture-sensitivity concerns of nylon.
Lifecycle and sourcing posture
The 1720430606 carries an Active product status and ROHS3 Compliant certification — no end-of-life notice or NRND flag is on record. Sourced to order against RFQ in standard production quantities; the Super Sabre 172043 is an established Molex industrial power-interconnect line with consistent production history.
