Molex 1722490100 — Wire-to-Board Connectors

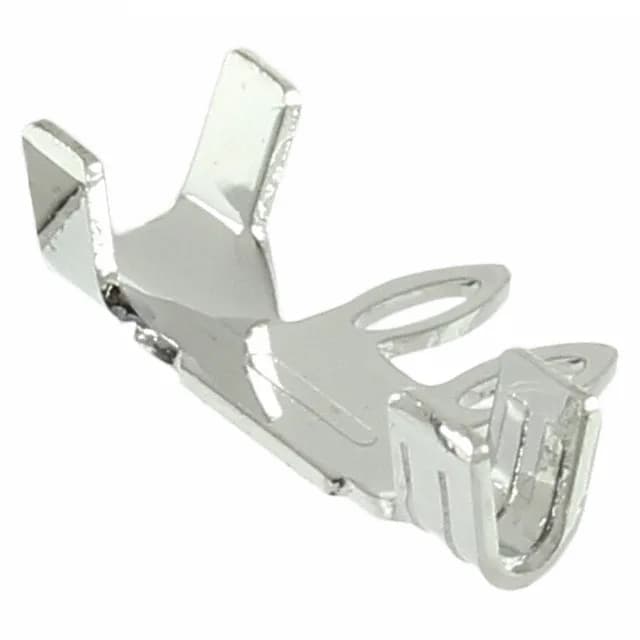

Molex 1722490100 SolderRight Wire-to-Board Terminal

MPN1722490100
Active

Molex SolderRight wire-to-board terminal, 1722490100, 14-16 AWG, tin-plated brass, 0.325" overall length, accepts 0.094"~0.110" insulation diameter.

$0.3800Ref. price · indicative, final on quote
Molex 1722490100 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolderRight
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1722490100 specifications
ParameterValue
SeriesSolderRight
Terminal typeWire to Board
Wire gauge14-16 AWG
Contact materialBrass
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishTin
Length - overall0.325\" (8.26mm)
Insulation diameter0.094\" ~ 0.110\" (2.39mm ~ 2.79mm)

Product details

Terminal for 14-16 AWG wire in the SolderRight series

The Molex 1722490100 is a tin-plated brass wire-to-board terminal from the SolderRight series, sized for 14-16 AWG wire. The overall length is 0.325" (8.26 mm), and the insulation barrel accepts wire insulation from 0.094" to 0.110" (2.39 mm to 2.79 mm) in diameter. This is the crimp terminal only — it mates into a SolderRight housing to complete a wire-to-board interconnect.

Packaging for the line

Available in Tape & Reel (TR) for automated crimp presses, or Cut Tape (CT) for prototype and low-volume builds. The base product number is 172249.

Frequently asked questions

What housing is compatible with 1722490100?

This is a SolderRight series terminal — it mates into the matching SolderRight receptacle housing. Use the housing that matches your circuit count and keying; the terminal itself is common across the series.

Is 1722490100 RoHS compliant?

Yes, it carries a ROHS3 compliance rating.

Where can I buy Molex 1722490100?

This part is sourced to order against your RFQ.
