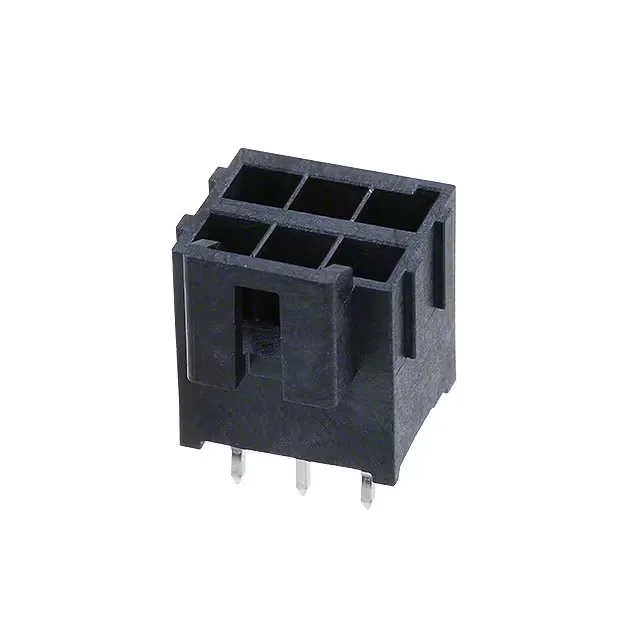

Molex 1722981106
MPN1722981106
Active
CONN HEADER VERT 6POS 3.5MM
$1.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUltra-Fit 172298
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172298 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 6 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
