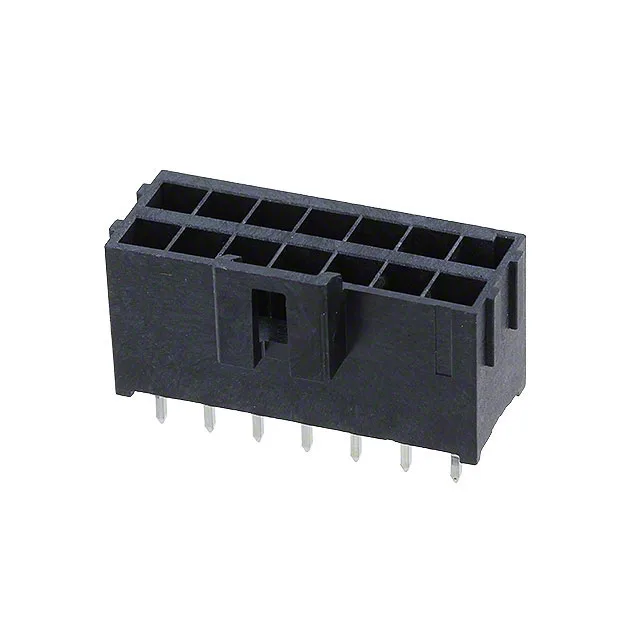

Molex Ultra-Fit 172298 header, order code 1722981214, 14 positions, dual row, 0.138" (3.50 mm) pitch, 400 V, gold-plated mating contacts (15.0 µin), through-hole kinked-pin solder, latch holder, 4-wall shrouded with board guide.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172298 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 14 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1722981214: Mating contacts are gold-plated (15.0 µin) on copper alloy; the solder posts receive a tin finish (60.0 µin).
The 4-wall shrouded housing with board guide aligns the header during mating and protects the contacts.
No pin-compatible alternative is listed in the Ultra-Fit 172298 series. The 1722981214 is the 14-position member; other position counts in the series share the same pitch and row spacing but differ in circuit count.
