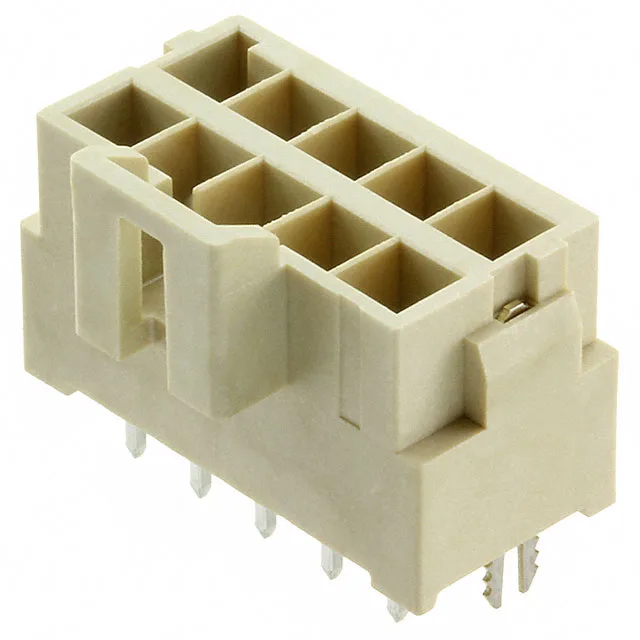

Molex Ultra-Fit 1722992110 Header 10-Pos 3.50mm Pitch
MPN1722992110
Active
Molex Ultra-Fit 1722992110 is a 10-position, dual-row board-to-cable header with 0.138 inch (3.50 mm) pitch and through-hole solder termination. Tin-plated copper alloy contacts, four-wall shroud, latch holder fastening, rated 400 V, operating range -40 to 105 degC, LCP housing UL94 V-0, bulk pack.
$2.7000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172299 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 10 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Frequently asked questions
What does the 1722992110 mate with?
It mates with the matching Molex Ultra-Fit 172299 series dual-row receptacle housing at the same 3.50 mm pitch and 10-position count. The latch-holder header and the corresponding TPA (Terminal Position Assurance) receptacle housing are the complete intermateable pair.
