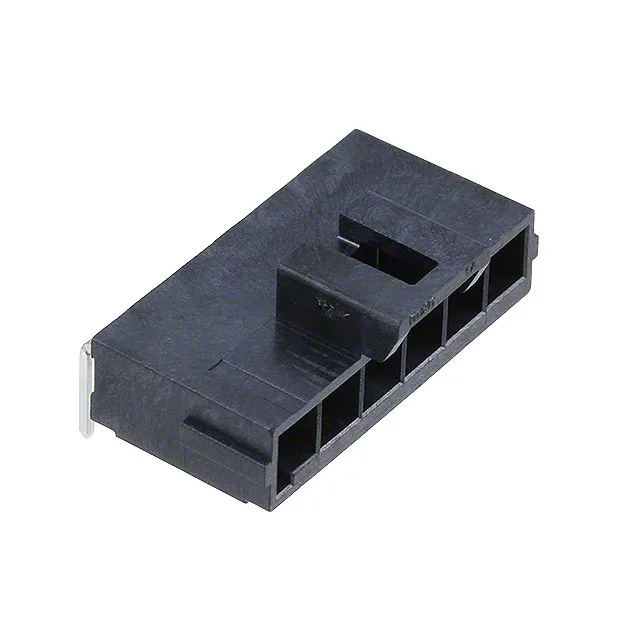

1723101206 — Molex product photo
Molex

Molex 1723101206 Ultra-Fit Header, 6-Circuit, 3.50mm

MPN1723101206
Obsolete

Molex Ultra-Fit 172310 header, 6 circuits, 3.50mm pitch, board-to-cable, right-angle through-hole, male pin, 400V, gold on mating contact / tin on post, latch holder, shrouded 4-wall, UL94 V-0 LCP, -40 to 120°C.

$1.5759Ref. price · indicative, final on quote
1723101206 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1723101206 Technical Specifications
ParameterValue
SeriesUltra-Fit 172310
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating400V
Operating temperature-40°C ~ 120°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.353\" (8.96mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.138\" (3.50mm)
Positions6
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Obsolete — Sourcing Options for the 1723101206

6 Circuits at 3.50 mm Pitch — Board Footprint and Mating

Rated for 400 V, the connector suits power distribution within industrial, lighting, and telecommunications equipment where the voltage rail stays below that ceiling. The tin post finish (60.0 µinch) is standard for solder joints and does not limit cycle life.

Right-Angle Through-Hole — Board Edge Routing

The 0.126" (3.20 mm) post length provides a solid solder joint into the plated through-hole. A latch holder fastens the mated pair, providing vibration-resistant retention in automotive and industrial environments where the assembly sees mechanical shock or cable strain.

Frequently asked questions

Is the Molex 1723101206 obsolete, and where can I buy it?

Yes, the 1723101206 carries an Obsolete lifecycle status. It is no longer produced by Molex.
