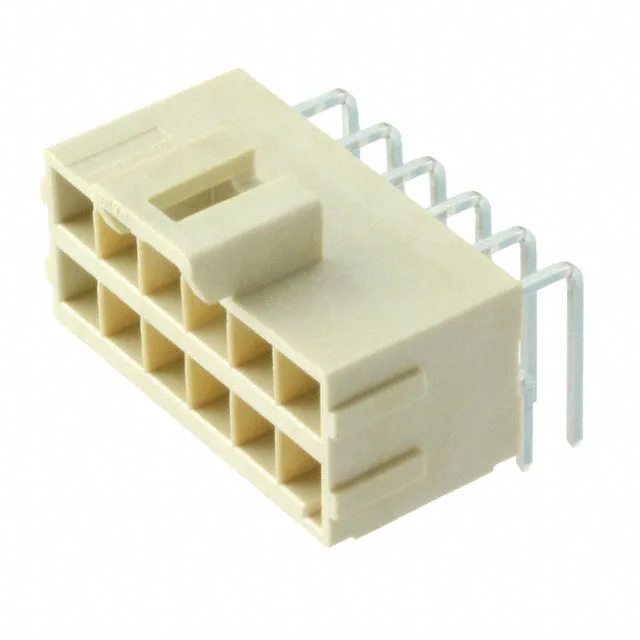

Molex Ultra-Fit 172316 header, order code 1723162112, 12 positions, dual row, 0.138" (3.50 mm) pitch, 600 VAC/DC, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172316 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600VAC/DC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.534\" (13.56mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1723162112 is the 12-circuit member of Molex's Ultra-Fit 172316 shrouded header line, designed for board-to-cable/wire power applications. It carries tin-plated mating contacts rated 600 VAC/DC and mounts through-hole right-angle with solder termination.
