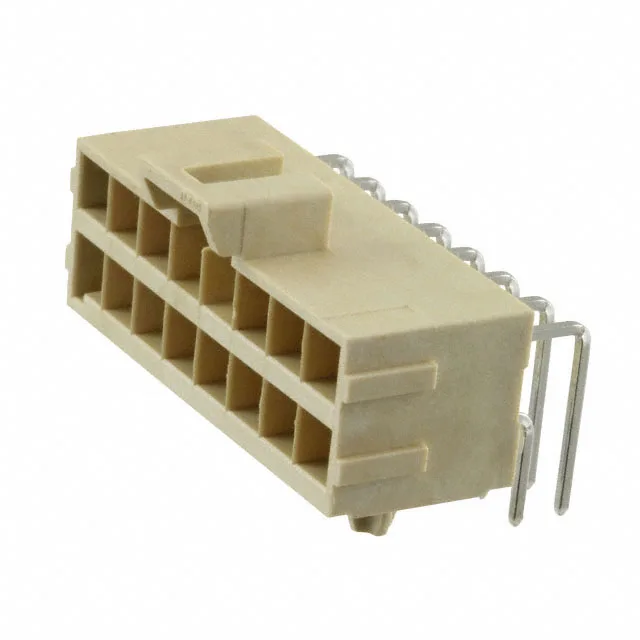

1723162116 — Molex product photo
Molex

1723162116 Molex Ultra-Fit Header 16 Circuit 3.50mm Pitch

MPN1723162116
Obsolete

Molex Ultra-Fit 172316 series header, 16 circuits, 3.50mm pitch, right-angle through-hole, shrouded - 4 wall, latch holder, tin contacts, 600VAC/DC, -40°C to 105°C, UL94 V-0.

$4.1748Ref. price · indicative, final on quote
1723162116 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1723162116 Technical Specifications
ParameterValue
SeriesUltra-Fit 172316
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600VAC/DC
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.534\" (13.56mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.138\" (3.50mm)
Positions16
Row spacing - mating0.181\" (4.60mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

16-Circuit Right-Angle Header with Latch Holder

The 1723162116: Rated 600VAC/DC and -40°C to 105°C, it fits automotive, industrial, lighting, and telecom enclosures where the board sees moderate temperature swings.

Tin Contacts at 60µin — Practical for Moderate Duty

Tin is a workhorse finish for cost-sensitive, moderate-cycle applications — think annual maintenance or field-service swaps, not daily reconnects. In a non-corrosive indoor environment, 60µin tin holds up well; in humid or industrial fume areas, gold-plated siblings in the Ultra-Fit family would be a better long-term bet.

Obsolete — Sourced via Independent Channels

Molex has marked 1723162116 as Obsolete. If you need a pin-compatible alternative, the Ultra-Fit series includes other 16-circuit, 3.50mm pitch headers with similar shrouding and latch options; verify the mating half and board footprint before committing.

Frequently asked questions

Is 1723162116 obsolete?

Yes, Molex has listed 1723162116 as Obsolete. The part can be sourced through independent surplus channels — availability and pricing are confirmed at RFQ.
