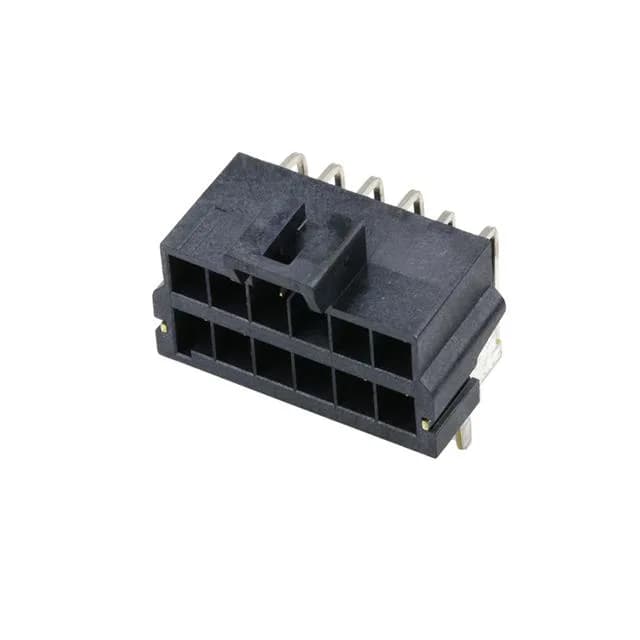

Right-angle shrouded header for board-edge power and signal
Pitch is 3.50 mm on the mating interface, with a row spacing of 4.60 mm — wider than a typical 2.54 mm header, which gives more room for trace routing between pads and supports higher current per circuit when paired with the appropriate wire gauge.
Gold mating finish and current rating tied to wire gauge
For a given application, match the wire gauge to the load current and consult the terminal's derating curve.
Mating and board placement notes
The 4-wall shroud also protects the pins from accidental contact before mating.
