Molex 1723163314 — Pin Headers

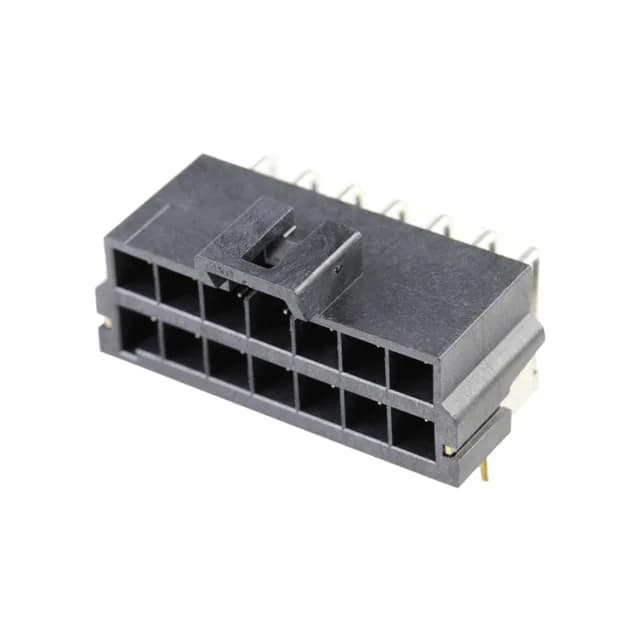

Molex 1723163314 Ultra-Fit Header, 14 Circuit, 3.50mm

MPN1723163314
Active

Molex Ultra-Fit 172316 header, 14 circuits, 3.50mm pitch, dual-row, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, UL94 V-0 black LCP housing.

$9.8000Ref. price · indicative, final on quote
Molex 1723163314 datasheet (PDF)
RoHSROHS3 Compliant
SeriesUltra-Fit 172316
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1723163314 key specifications
ParameterValue
SeriesUltra-Fit 172316
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.534\" (13.56mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

1723163314 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.138\" (3.50mm)
Positions14
Row spacing - mating0.181\" (4.60mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-circuit right-angle header in the Ultra-Fit 172316 family

The 1723163314: This is a Molex Ultra-Fit 172316 series header, 14 circuits in two rows, with a 3.50mm pitch and a 4.60mm row spacing. The post tails are tin-plated for reliable solder wetting in the through-hole.

Current, voltage, and temperature envelope

The current rating is wire-gauge dependent — the contact itself is rated for the full Ultra-Fit current range, but the actual limit is set by the wire size and ambient temperature.

Mounting and board integration

Through-hole, right-angle mounting with a 0.126-inch (3.20mm) post length.

Frequently asked questions

Does 1723163314 have a latch?

Yes, the fastening type is a latch holder. It provides a positive lock with the mating receptacle, preventing accidental unmating under vibration.
