Molex 1726722006

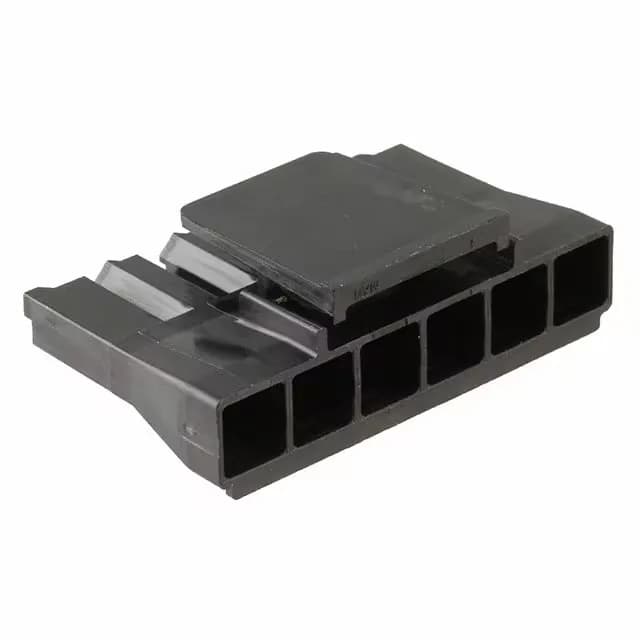

Molex Super Sabre 1726722006 Receptacle Housing, 6-Circuit, 34 A

MPN1726722006
Active

Molex Super Sabre 172672 receptacle housing, 6 circuits, 7.50 mm pitch, 34 A, single-row, latch lock, free-hanging, PA nylon black, -40 to 125°C, contacts not included.

$1.36Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSuper Sabre 172672
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1726722006 specifications
ParameterValue
SeriesSuper Sabre 172672
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Current rating34 A
Operating temperature-40°C ~ 125°C
ColorBlack
Material - insulationPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.295\" (7.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions6

Product details

It uses a female blade socket contact system with crimp termination — contacts are ordered separately. ROHS3 Compliant per.

The Sabre 44441 receptacle housing (e.g. 444412005) shares the same 7.50 mm pitch and latch-lock free-hanging format, but is rated 18 A per circuit — roughly half the current capacity of the Super Sabre. Both are single-row, crimp-terminated, and accept female blade socket contacts. The Super Sabre's higher current rating comes from a larger contact interface and heavier wire accommodation. If your BOM was built around the 44441 series and you need more headroom without changing the board footprint or mating envelope, the Super Sabre is a direct form-fit-function upgrade — same mounting, same latch, same pitch, same row count. Just swap the terminals and contacts to match the higher current.

Frequently asked questions

What does 'Contacts Not Included' mean for 1726722006?

The housing ships without crimp terminals — you order the female blade socket contacts separately to match your wire gauge and current requirements.

Will 1726722006 drop into a panel designed for 444412005 without rewiring?

Yes — same 7.50 mm pitch, same single-row latch-lock free-hanging format, same female blade socket contact system. The Super Sabre housing is a form-fit-function replacement for the Sabre 44441 housing, but you must use the higher-current Super Sabre terminals to realize the 34 A rating.
