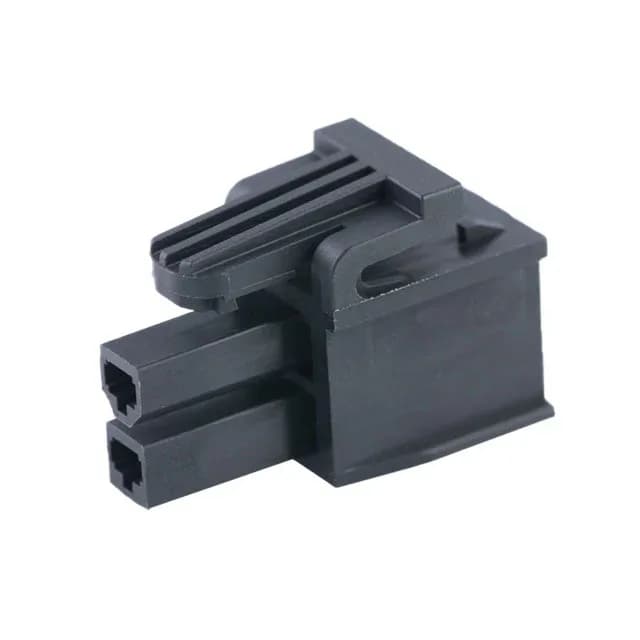

Molex Mini-Fit Sigma 172708 series, 1727081002, 2-position receptacle housing, 2-row, 4.20mm row spacing, latch lock, glow wire compliant, -40°C to 105°C, black PA nylon, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Sigma 172708 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bag |
| Features | Glow Wire Compliant |
| Row spacing | 0.165\" (4.20mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 2 |
The 1727081002: With a 4.20mm row spacing and dual-row layout, this housing supports a compact yet robust interconnect for power and signal circuits in automotive, appliance, and industrial control panels.
The housing is glow wire compliant, suitable for household appliances and HVAC equipment.
RoHS3 compliant; packaged in bags for manual assembly or automated kitting.
No — the housing ships with contacts not included.
The 1727081002 is a 2-position receptacle housing; the 1727081003 is a 3-position version. Both share the same 4.20mm row spacing, latch lock, and glow wire compliance — the only difference is circuit count.
