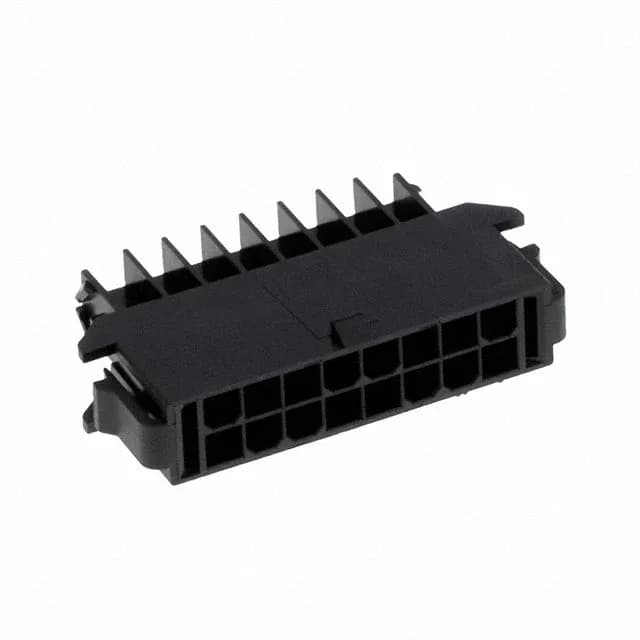

1727670016 — Molex product photo
Molex

Molex Mini-Fit TPA2 1727670016 Plug Housing, 16 Pos, 4.20mm

MPN1727670016
Active

Molex Mini-Fit TPA2 172767 series, plug housing, 16 positions, 2 rows, 4.20mm pitch, panel mount, snap-in, locking ramp, crimp termination, black, -40°C to 105°C.

$1.0500Ref. price · indicative, final on quote
1727670016 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1727670016 Technical Specifications
ParameterValue
SeriesMini-Fit TPA2 172767
GenderMale Pin
Mounting typePanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows2
Contact terminationCrimp
Positions16

Product details

The Molex 1727670016 is a 16-circuit, 2-row plug housing from the Mini-Fit TPA2 172767 series. The housing is designed for panel-mount, snap-in installation — it clips into a panel cutout and the locking ramp holds the mated pair secure against vibration. This is the plug half; it mates with the matching Mini-Fit TPA2 receptacle housing.

The one thing that trips people up: contacts not included

This is a housing only — the male pin crimp terminals are ordered separately. The most common sourcing mistake on this part is assuming the contacts come with the housing. You need the matching crimp terminals (Molex Mini-Fit TPA2 male pin, 20-24 AWG) to populate the 16 positions. The housing accepts the terminals after crimping, and the TPA (Terminal Position Assurance) feature in the TPA2 series locks each terminal in place so a partially seated contact doesn't leave the harness dead.

Frequently asked questions

What is the mating part for 1727670016?

It mates with the matching Mini-Fit TPA2 receptacle housing of the same circuit count and pitch.

What is the pitch of 1727670016?

The pitch is 0.165" (4.20 mm), the standard spacing for the Mini-Fit power interconnect series.
