Molex Mini-Fit TPA2 172767 series, 8-position dual-row plug housing, 4.20mm pitch, panel mount snap-in, locking ramp, glow wire compliant, black PA nylon, -40°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mini-Fit TPA2 172767 |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.165\" (4.20mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Row spacing | 0.165\" (4.20mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |

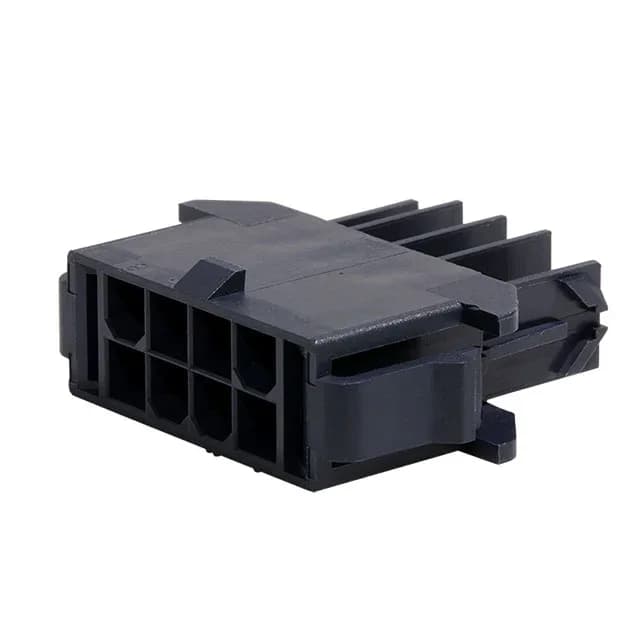

The 1727670108 is an 8-position, dual-row plug housing from the Molex Mini-Fit TPA2 172767 series, on 4.20mm pitch with 4.20mm row spacing.
The housing is molded from black polyamide (nylon) and is glow wire compliant, a requirement for appliance and some industrial control applications.
No – this housing is from the Mini-Fit TPA2 series, not the original Mini-Fit Jr. family. The TPA2 terminal geometry and housing keying differ; use only TPA2-specified contacts.
Both are 8-position plug housings from the same series. The difference is the color – 1727670108 is black, while 1727670109 is natural (unpigmented). All other specs are identical.
Yes – the fastening type is a locking ramp, which provides a positive latch when mated with the corresponding receptacle housing.
