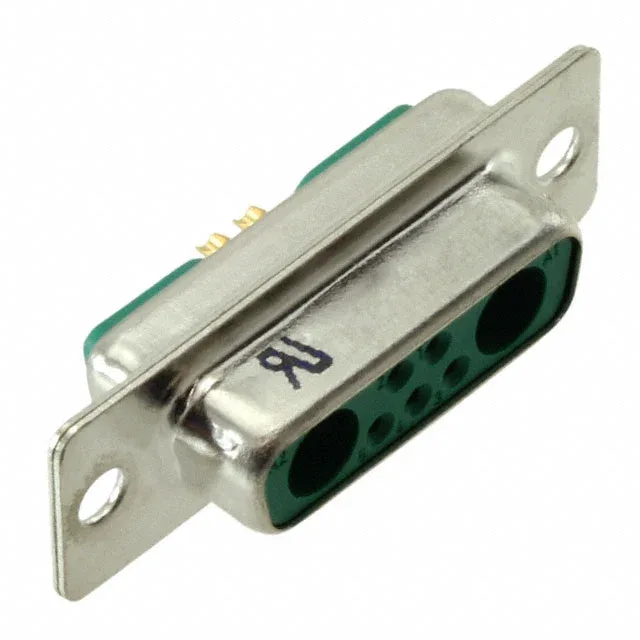

Molex 1731070060
MPN1731070060
Active
CONN D-SUB RCPT 7POS PNL MNT
$6.76Ref. price · indicative, final on quote
RoHSNot applicable
SeriesFM, FCT 173107
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FM, FCT 173107 |
| Type | Signal and Coax or Power (Not Included) |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Shell size, connector layout | 2 (DA, A) - 7W2 |
| Operating temperature | -55°C ~ 130°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 7 (5 + 2 Coax or Power) |
