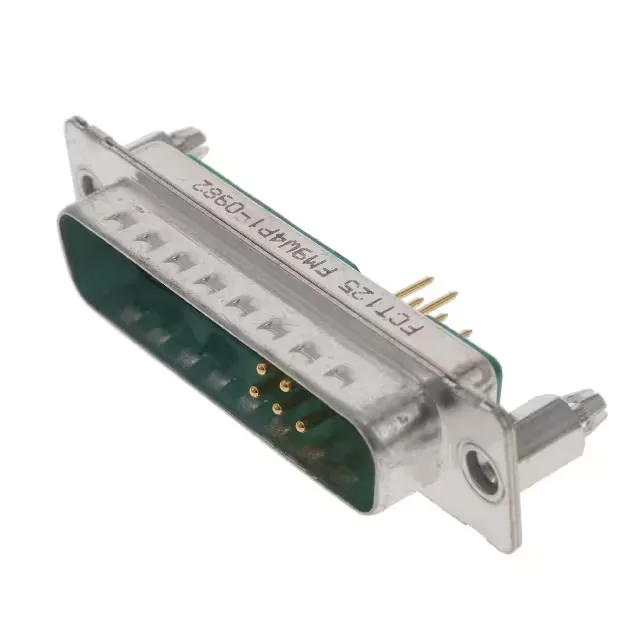

Molex 1731070246
MPN1731070246
Active
CONN D-SUB PLUG 9POS VERT SLDR
$8.26Ref. price · indicative, final on quote
SeriesFM, FCT 173107
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FM, FCT 173107 |
| Type | Signal and Coax or Power (Not Included) |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Shell size, connector layout | 3 (DB, B) - 9W4 |
| Operating temperature | -55°C ~ 130°C |
| Color | Green |
| Contact material | Copper Alloy |
| Dielectric material | Polyester, Glass Filled |
| Shell material, finish | Steel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 9 (5 + 4 Coax or Power) |
